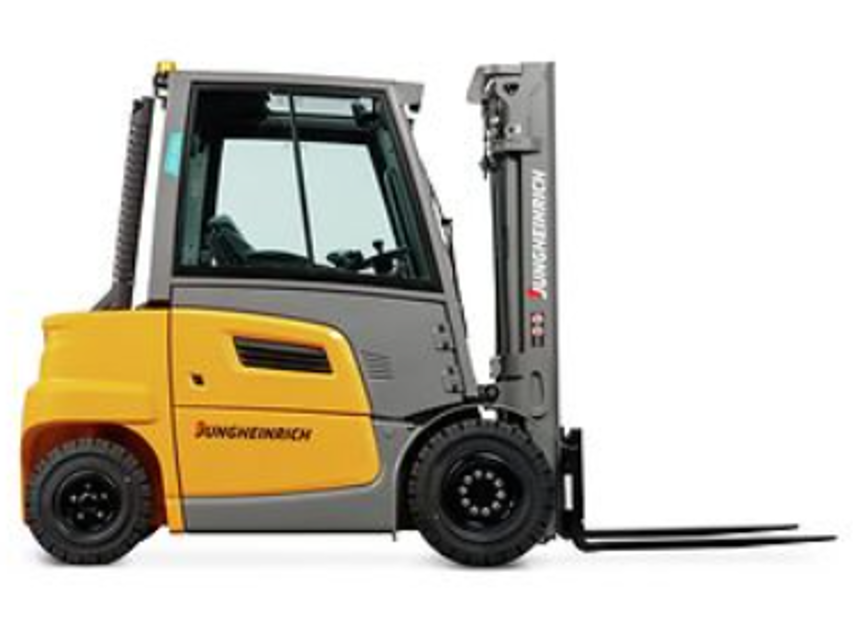

JUNGHEINRICH Industrial Truck TFG 430s

Wear protective clothing and goggles

Ensure no contact with skin, clothing, or eyes

Neutralize spilled battery acid with water immediately

Dispose of used battery acid according to regulations

Clean the area around the inspection plugs

Check if the acid level is between the top and bottom markings

Park the truck securely on a level surface.

Open the rear bonnet locks and lift off the rear bonnet.

Check the coolant level on the expansion vessel.

Is the coolant level between the 'MIN' and 'MAX' markings?

Fit the rear cover and snap it back into position.

Unscrew the ventilation/discharge filter (212)

Visually inspect the filter for contamination

Insert a new filter if contaminated

Screw the ventilation/discharge filter back on

Collect any spilled hydraulic oil

Unscrew the cap of the hydraulic oil filter (211)

Remove the filter from the cover

Check for any oil leaks after replacement

Ensure the filter is securely installed

Park the truck on a level surface

Start the engine and fully raise and lower the mast once

Remove the hydraulic oil dipstick (209) from the hole, wipe it with a clean cloth, and insert it fully again

Remove the hydraulic oil dipstick and check the level of the hydraulic oil

Is the oil level between 'Min.' and 'Max.' for cold oil or just above 'MAX' for hot oil?
