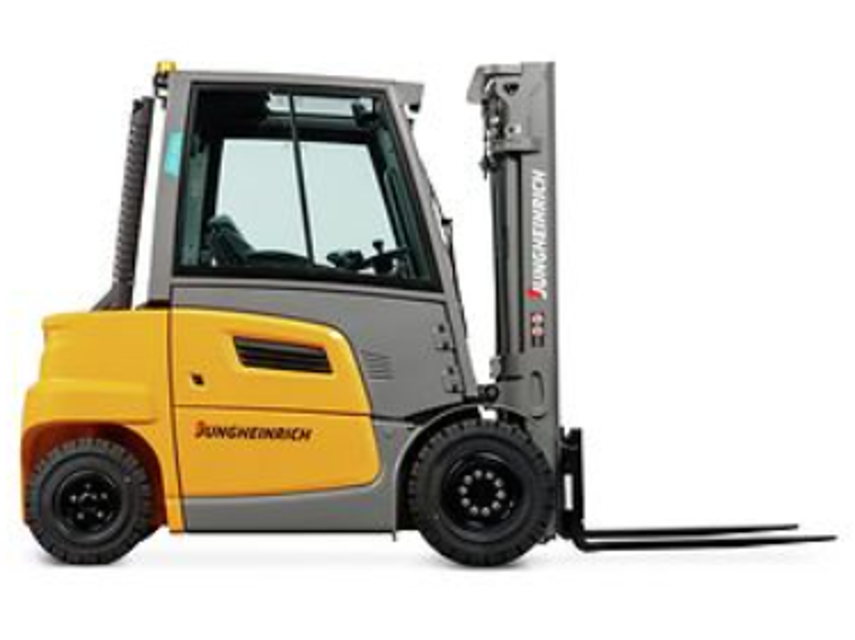

JUNGHEINRICH Industrial Truck DFG 430 S

Park the truck securely on a level surface

Remove minor contamination from the fan grille with weak suctioned air

Remove the four mounting screws and washers and place the fan unit to the front

Remove any contamination from the radiator and fan with weak suctioned air

Take care not to damage the cooler plates and the fan blades

Check the radiator and fan for damage

Park the truck on a level surface

Start the engine and fully raise and lower the mast once

Remove the hydraulic oil dipstick (209) from the hole, wipe it with a clean cloth, and insert it fully again

Remove the hydraulic oil dipstick and check the level of the hydraulic oil

Is the oil level between 'Min.' and 'Max.' for cold oil or just above 'MAX' for hot oil?

Ensure the engine is switched off before starting maintenance.

Confirm the air filter cartridge is not removed while the engine is running.

Air Filter Cartridge Replacement

Undo the 2 mounting clamps (230) and remove the dust collector pot.

Carefully remove the air filter cartridge from the filter housing.

Remove the air filter cartridge.

Thoroughly clean the dust collector pot and remove the dust extraction valve.

Prepare the truck for maintenance and repairs

Check condition and rating of the fuses

Replace any damaged or incorrect fuses

Turn the twist off knob (169) anti-clockwise

Pull the filter cassette (168) out in the direction of the arrow

Insert the filter cassette (168) into the heating console (167)

Turn the twist-off knob clockwise
