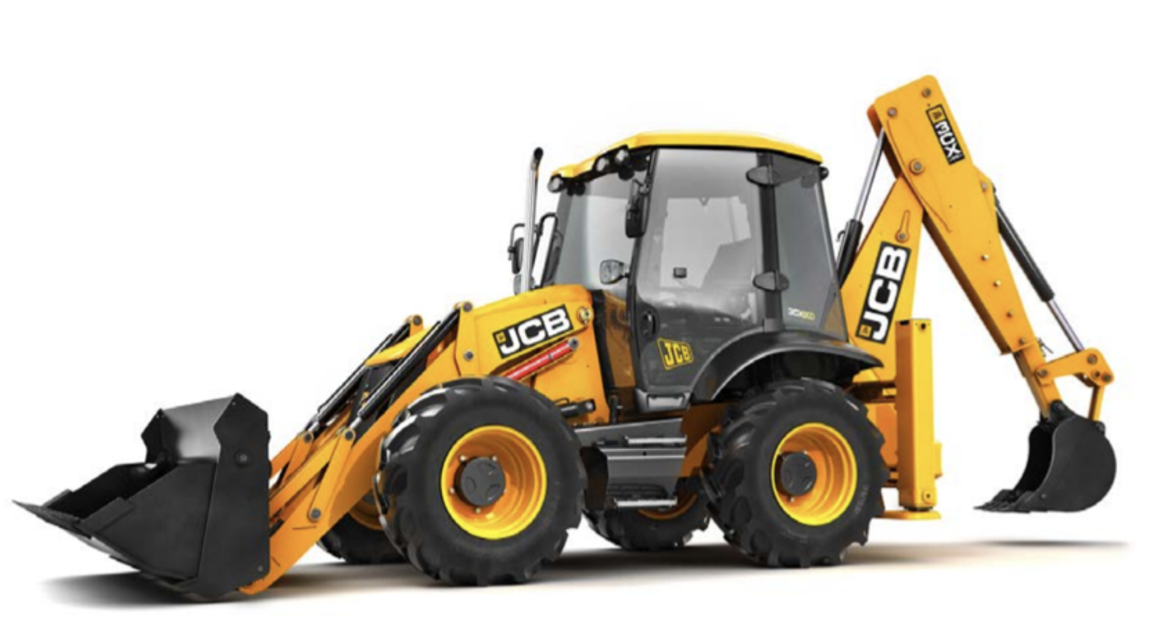

JCB JCB Backhoe Loader 215 III 215 III

Check the fire extinguisher for damage, security and signs of leaking

Check that the gauge B indicates that the extinguisher is charged ie. the needle is in the GREEN segment

Note: If the needle is in or very near the RED segment at either end of the gauge, the extinguisher must be serviced or replaced

Make sure the safety pin is fitted and secure

The extinguisher should be serviced every 12 months by a suitably qualified person

Check the ROPS/FOPS Structure (p.49)

Sign off on the fire extinguisher service

Change Engine Oil and Filter (AK and AR Build)

Change Engine Fuel Filter (AK and AR Build)

Clean Lift Pump Strainer (AK and AR Build Only)

Drain and Clean Engine Fuel Sedimenter

Check Fan Belt Tension/Condition

Check Engine Mounting Bolts for Tightness

Sign off on the 100 Hours Loader Engine Maintenance

Sign off on the loader maintenance

Park the machine on firm level ground, engage the parking brake and set the transmission to neutral. Lower the attachments to the ground and stop the engine

Machine parked and prepared for cleaning?

Clean the machine using water and/or steam. Do not allow mud, debris etc to build upon the machine, pay particular attention to the following areas:

Engine and transmission free of mud?

Radiator grille not clogged up?

WARNING! Airborne particles of light combustible material such as straw, grass, wood shavings, etc. must not be allowed to accumulate within the engine compartment or in the propshaft guards (when fitted). Please inspect these areas frequently and clean at the beginning of each work shift or more often if required. Before opening the engine cover, ensure that the top is clear of debris

Engine compartment and propshaft guards free of combustible material?

- Change Axle Oil (incl. Hubs when applicable)

- Change Axle Oil - Limited Slip Differential

- Check Tyre Pressures/Condition

- Check Steer Axle Movement/Shimming
