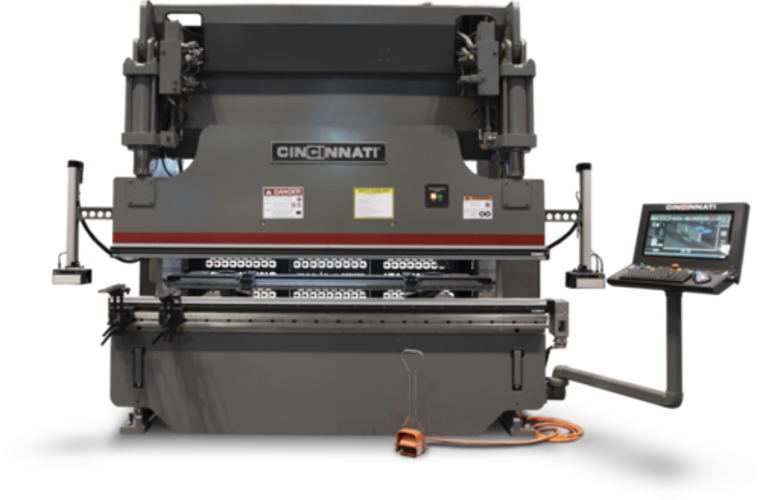

Cincinnati Press Brake 60af+4
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Cincinnati Press Brake 60af+4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

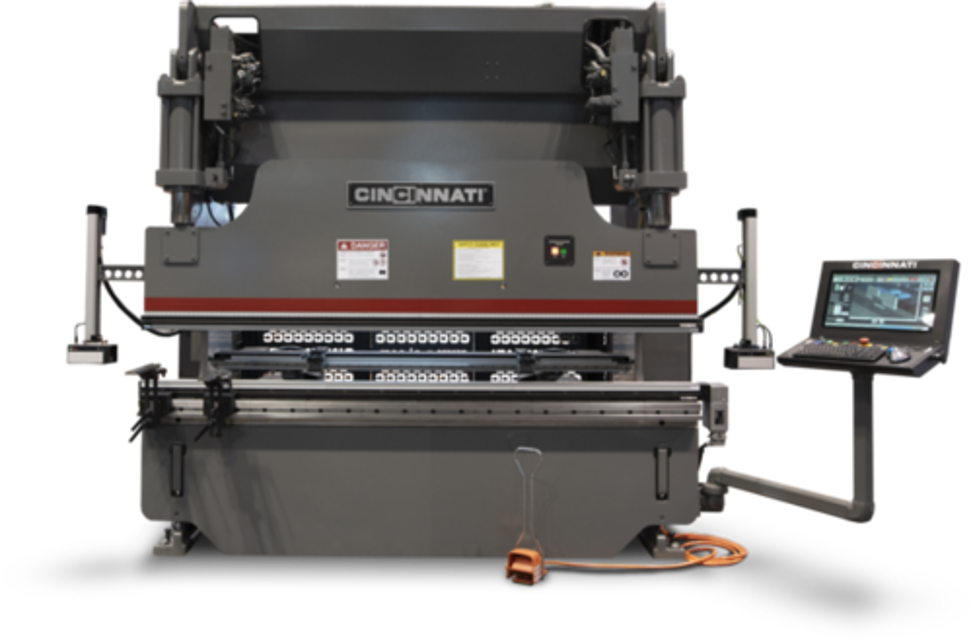

Cincinnati Press Brake 60af+4
Create an account to install this asset package.
Maintenance Plans for Cincinnati Press Brake Model 60af+4
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Press Brake Maintenance
Drain and clean hydraulic reservoir
Refill with new oil
Replace reservoir air filter – breather
Note: UPS battery should be replaced every 2 Years
Sign off on the press brake maintenance
1 Daily Press Brake Check
Check reservoir oil level
Check the oil display for proper operation
Check entire machine for loose fasteners – tighten if necessary
1 Monthly Press Brake Maintenance
Lubricate cylinder clevis pin
Clean and flush ram guides with oil
Check for water in reservoir
Lubricate backgage guide rails, bearings and drive screw
Wipe entire machine clean
3 Monthly Press Brake Maintenance
Machine levelness check
Ram guide clearance check
If ram guide clearance is not satisfactory, re-level the machine
Swivel end-guide bearings adjustment check
Sign off on the press brake maintenance
Parts for Cincinnati Press Brake 60af+4
Access the parts list for your equipment in MaintainX.
Aerosol Spray
420924
Aerosol Spray
420924
Aerosol Spray
420924
