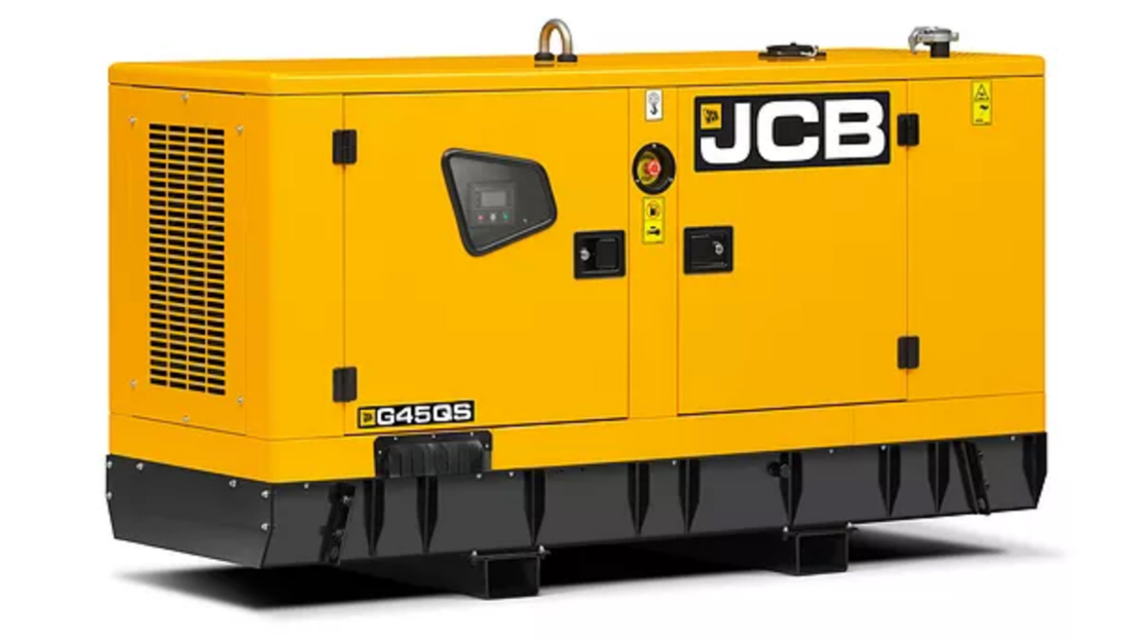

The JCB Generator G45S is a robust industrial generator designed for reliable power generation in various applications. Known for its durability and efficiency, this model provides dependable performance, making it an ideal choice for construction sites and industrial operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Generator G45S

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Generator G45S

Create an account to install this asset package.

Maintenance Plans for JCB Generator Model G45S

Integrate maintenance plans directly into your work orders in MaintainX.

Fuel System Check

Machine made safe

Access to the engine compartment obtained

Engine compartment, fuel lines and the area below checked for leaks

Need to contact JCB dealer?

Run this procedure

Battery Cleaning

WARNING Keep metal watch straps and any metal fasteners on your clothes, clear of the positive (+) battery terminal. Such items can short between the terminal and nearby metal work. If it happens you can get burned.

Make the machine safe

Get access to the battery

If the terminal posts are corroded and covered with white powder wash them with hot water

Upload a photo of the terminal posts after cleaning

Apply a thin layer of petroleum jelly to the terminal posts

Sign off on the battery cleaning

Run this procedure

Dust Valve Check

Check the dust valve for rips/tears

Check there are no obstructions

Check that the dust valve is free of dirt and dust

Check that the dust valve securely attached to the air filter housing

Run this procedure

Engine Cleaning

Warning: Obey the correct procedures. Contamination of the fuel system will cause damage and possible failure of the engine.

Warning: The engine or certain components could be damaged by high pressure washing systems; special precautions must be taken if the engine is to be washed using a high pressure system.

Before carrying out any service procedures that require components to be removed, the engine must be properly cleaned.

Electrical system is isolated

All electrical connectors are correctly coupled

Alternator is covered with a plastic bag to prevent water ingress

Engine air intake, exhaust and breather system are sealed

Oil filler caps and dipstick are correctly installed

Used a low pressure water jet and brush to soak off caked mud or dirt

Run this procedure

Coolant Replace

CAUTION The cooling system is pressurised when the coolant is hot. When you remove the cap, hot coolant can spray out and burn you. Make sure that the engine is cool before you work on the cooling system.

Stop the engine and let it cool down. Make the machine safe.

Carefully loosen the radiator cap. Let any pressure escape before removing the cap.

Disconnect the bottom radiator hose and allow the coolant to drain.

Flush the system by pouring clean water into filler port.

Reconnect the radiator hose.

Fill the radiator to the level indicated using the correct anti-freeze solution.

Check for leaks.

Run the engine to raise the coolant to working temperature and pressure.

Run this procedure
