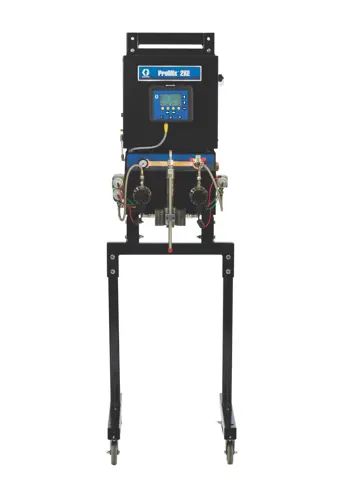

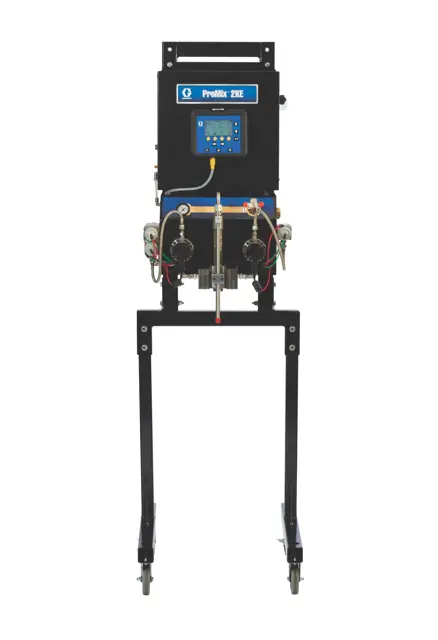

Graco Meter System 24F086 series-F11A

Create an account to install this asset package.

Maintenance Plans for Graco Meter System Model 24F086 series-F11A

Integrate maintenance plans directly into your work orders in MaintainX.

Flow Meters Maintennace

Coriolis Meter

Upload the 'Before Servicing' page from manual

Upload the 'Coriolis meter' page from manual 313599

G3000 Meter Removal

Upload the 'Before Servicing' page from manual

Cable harness and fluid lines removed

Two screws and washers holding the meter and the spacer removed

Upload the 'Service meter' page from manual 308778

G3000 Meter Installation

Run this procedure

Power Supply Replacement

⚠️ All electrical wiring must be completed by a qualified electrician and comply with all local codes and regulations.

Wall Power Supply and Filter

1. Follow Before Servicing, page 13. Disconnect main power.

2. Open Control Box.

3. Disconnect the three input wires from the line filter (403).

4. See Fig. 8. Disconnect the power supply CAN cable (401a) from the advanced fluid control module (302).

5. Disconnect line filter wires and power supply wires from the power switch (402).

6. Disconnect the power supply ground wire, PS(GND), from the advanced fluid control module ground terminal (T).

7. Remove four screws (405) and remove power supply (401). If replacing filter, remove two screws (407) and the filter (403).

Run this procedure

Advanced Fluid Control Module (AFCM) Replacement

Follow Before Servicing, page 13. Disconnect main power.

Control Box opened

All cables from AFCM (302) removed and cable locations noted

Ground wire disconnected from ground screw (GS)

Four mounting screws (303) loosened

AFCM slid up and out of keyhole slots

Follow steps in reverse order to install a new AFCM. See electrical schematic for cable connection information.

Follow instructions in Manual 3A1244 to update the software on the new AFCM.

Control Box closed and power restored

Run this procedure

Display Module Replacement

Follow Before Servicing, page 13

Display Module (63) removed from the mounting bracket (49)

CAN cable (64) disconnected

New Display Module replaced

CAN cable (64) reconnected

Follow instructions in Manual 3A1244 to update the software on the new Display Module

Sign off on the Display Module Replacement

Run this procedure

1 Monthly Air Filter Maintenance

⚠️ Removing a pressurized air filter bowl could cause serious injury. Depressurize air line before servicing.

Pump systems have two air filters: the 5 micron air manifold filter (209) and the 40 micron pump air filter (206). Meter systems have only the 5 micron filter (209). Check filters daily and replace element(s) as needed. Order 15D909 (5 micron) or 15D890 (40 micron).

Main air shutoff valve on air supply line and on system closed?

Air line depressurized?

Upload a photo of the removed filter cover (A)

Upload a photo of the unscrewed filter bowl (B)

Upload a photo of the replaced element (206a, 209a)

Filter bowl (B) screwed on securely?

Upload a photo of the installed cover (A)

Run this procedure
