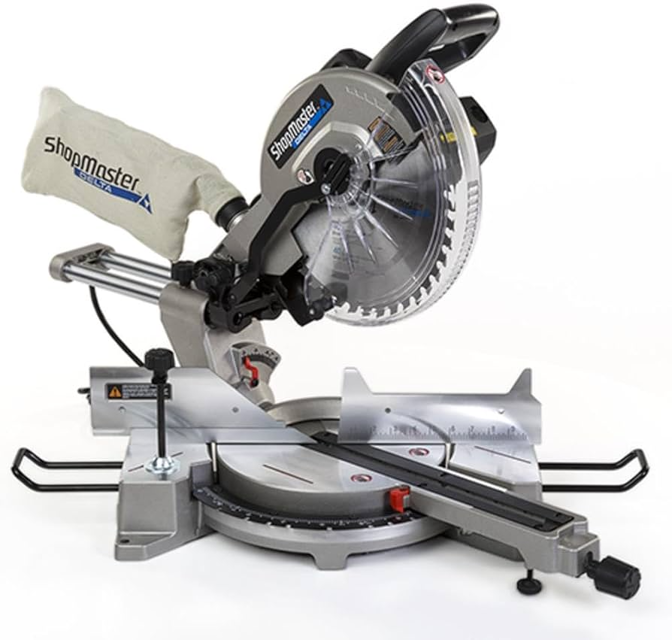

ShopMaster 12" Sliding Compound Miter Saw S26-272L

WARNING! When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage

All air passages blown out with dry compressed air

All plastic parts cleaned with a soft damp cloth

NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material

Certified safety equipment for eye, hearing and respiratory protection used while using compressed air

Sign off on the Compound Miter Saw Cleaning

WARNING! Failure to unplug the saw could result in accidental starting causing serious personal injury

Using a screwdriver, carefully remove the brush cap

NOTE: Remove the cap slowly. The brush assembly is spring-loaded and will pop out once the cap is removed

Inspect both brushes. If either has less than 1/4 in. length of carbon remaining, both brushes should be replaced

NOTE: Do not replace one side without replacing the other

Insert both brushes into the brush tube (C), making sure the curvature of the brushes matches curvature of motor

Brush assembly should move freely within the tube
