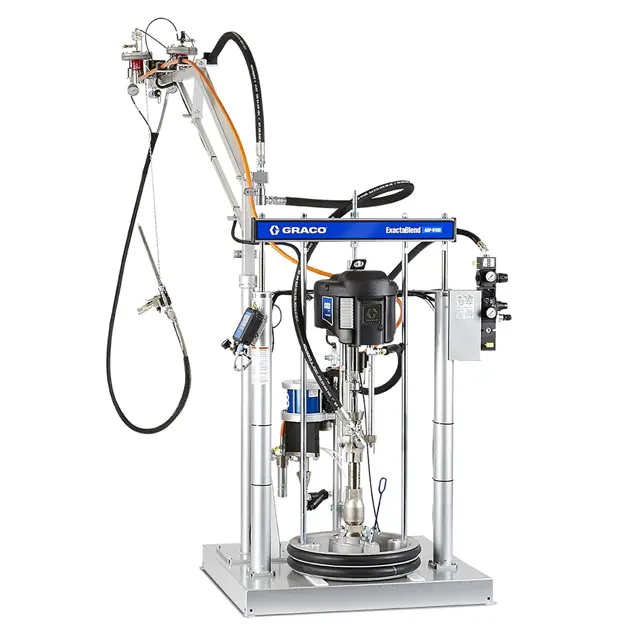

Graco Advanced Glazing Proportioner 24R812

Create an account to install this asset package.

Maintenance Plans for Graco Advanced Glazing Proportioner Model 24R812

Integrate maintenance plans directly into your work orders in MaintainX.

1 Weekly Advanced Glazing Proportioner Maintenance

• Check catalyst B filter assembly to prevent crystallization.

Filters

Once a week check, clean, and replace (if needed) the following filters.

• S100 and U100 Models:

Catalyst pump outlet filter comes with a 60 mesh filter. Two pack 60 mesh filter replacement kit, 224459, is available.

• P100 Models:

Catalyst pump outlet filter comes with a 30 mesh filter. Two pack 30 mesh filter replacement kit, 224458, is available.

Seals

Once a week, check and tighten throat seals on the pumps and dosing valve.

Run this procedure

1 Daily Advanced Glazing Proportioner Check

Check iso lube bottle for discoloration

Perform Shutdown and install nightcap

Perform Pressure Relief Procedure

If electrical power is supplied to the machine, perform Base Purge

Navigate to the Purge/Prime screen

Verify both pumps are activate

Close the catalyst B ball valve located near the dispense applicator

Dispense material into a waste container until only the base A chemical is present

Engage the trigger lock

Run this procedure

Display Module Maintenance

Battery Replacement

A lithium battery maintains the DM clock when power is not connected.

To replace the battery:

1. Disconnect power to the DM.

NOTE: This can be done by removing the CAN cable from the bottom of the DM.

2. Remove rear access panel.

3. Remove the old battery and replace with a new CR2032 battery.

4. Properly dispose the old lithium battery according to local codes.

5. Replace rear access panel.

Run this procedure

Packing Nuts Maintenance

NOTE: There must be no pressure when adjusting the packing nuts. Air pressure in the feed tanks is too much.

Follow Pressure Relief Procedure, page 47, including relieving air pressure in the tanks.

Pressure relieved from tanks?

Fill metering pump packing nuts with throat seal liquid TSL.

Metering pump packing nuts filled with TSL?

After TSL is added, torque metering pump packing nuts to 50 ft-lb 67.5 N•m. Follow instructions in Xtreme Lowers manual 311762.

Metering pump packing nuts torqued to 50 ft-lb 67.5 N•m?

Fill dosing valve packing nut with throat seal liquid TSL.

Dosing valve packing nut filled with TSL?

Run this procedure

Calibration Check

Perform Base Purge, page 46

Navigate to the Home screen

Activate OK on the DM

Remove the static mixer

MD2 Only: Install the calibration nozzle onto the dispense applicator

Open the catalyst B ball valve located near the dispense applicator

Calibration Check Assembly Only: Dispense material into a waste container at the calibration check assembly to verify the V/P shown on the DM is at the correct value

Disengage the trigger lock

Hold a metal part of the gun firmly to a grounded metal pail. Trigger the gun until the Display Module shows OK

Run this procedure
