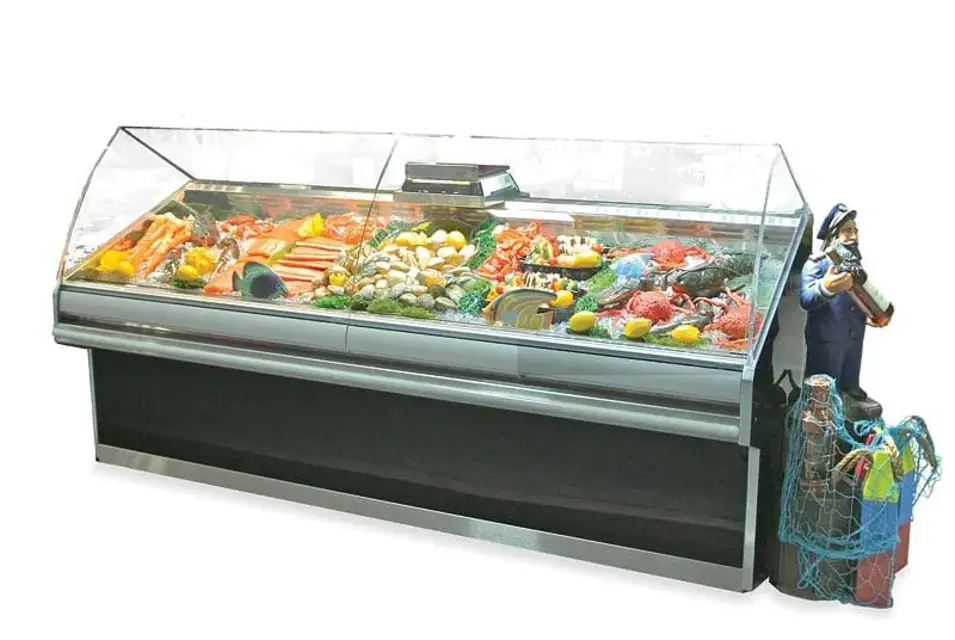

Hussmann Open Fish Sevice Case DSFN-EP-CNP-8-R W/LIGHTS & TIMER

Warning: Improper cleaning can degrade the quality of the surface.

Are you using the correct cleaning agents?

Are you using the correct cleaning cloths?

Is there any visible micro scratching on the surface?

Describe the condition of the surface

Sign off on the plexiglass and acrylic care

Warning: Shut off fan before cleaning. Do not use water hoses, chlorinated cleaner, abrasives or steel wool scouring pads, cleaning or sanitizing solution that has an oil base or an ammonia base.

Interior bottom wiped with domestic soap or detergent based cleaners?

Exterior cleaned with water and a mild detergent?

Interior wiped with damp non-abrasive cloth?

Visible debris surrounding or on top of the drain location cleaned?

All surfaces scrubbed thoroughly with soap and hot water?

Rinsed with hot water without flooding?

Sanitizing solution applied according to Hussmann’s directions?

1. The high optical clarity of this glass is possible due to special coatings on the glass surface itself.

2. To preserve this coating and the optical clarity, keep the glass clean. 3. Water is the only solution recommended to be used to clean the non-glare glass.

4. The damage to the glass from improper, caustic solutions is irreparable.

5. In addition to cleaning the glass with the recommended product, there are precautions that should be taken when working and cleaning the inside of the case.

• When cleaning the inside of the cases, we recommend that the glass be fully opened and covered to prevent to prevent solutions from splashing onto the glass and ruining the coating on the inside.;

CAUTION: DO NOT TEAR THE HONEYCOMB

1) Remove the honeycomb assembly as follows: Insert a small Phillips screwdriver behind the rear edge of the honeycomb on the right hand end and gently pull down.

- The bottom of the honeycomb will drop down.

- Continue down the length of the case, lifting the honeycomb out.

2) To clean honeycomb: Mix powdered detergent, in warm water. (5 to 7 Tablespoons per gallon).

- Immerse or spot clean the honeycomb.

- Use care not to damage the cell structure of the honeycomb.

- Rinse thoroughly in clean water. Shake excess water from the honeycomb and dry. (if heat is used, do not exceed 140F dry heat)

3) Install honeycomb by inserting the notched side up against the deflector and press upwards inserting the bottom of the honeycomb into the back ledge.

WARNING! ALWAYS DISCONNECT THE ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT OF THIS REFRIGERATOR. THIS INCLUDES, BUT IS NOT LIMITED TO SUCH ITEMS AS FANS AND THERMOSTATS.

The evaporator fan is located directly under the deck pan.

ALWAYS REPLACE THE FAN BLADE WITH THE RAISED EMBOSSING SIDE OF THE BLADE INSTALLED TOWARD THE MOTOR.

Sign off on the fan blade replacement
