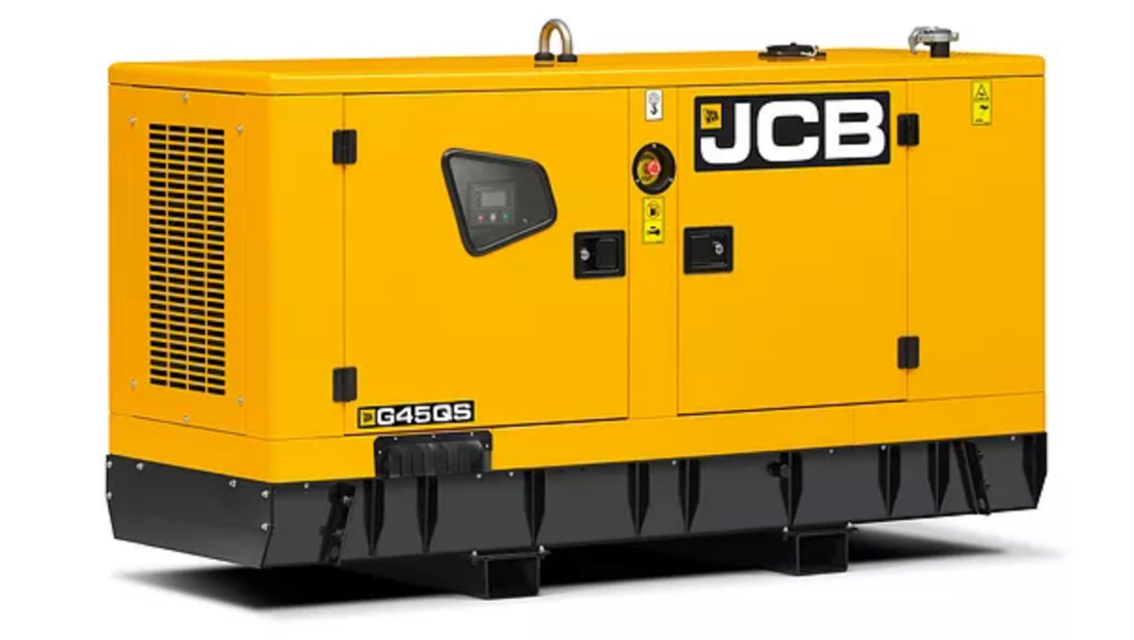

The JCB Generator G45 is a robust industrial generator designed for reliable power generation in various applications. Known for its durability and efficiency, this model ensures optimal performance and minimal downtime, making it an ideal choice for construction sites and industrial operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Generator G45

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Generator G45

Create an account to install this asset package.

Maintenance Plans for JCB Generator Model G45

Integrate maintenance plans directly into your work orders in MaintainX.

Engine Fuel Filter Replace

Make the machine safe

Get access to the engine compartment

Remove the sensor housing

Unscrew and remove the filter element

Fit a new element. Lubricate the gasket of the new cartridge. Do not fill the new cartridge with fuel

Refit the sensor housing

Bleed the fuel system

Close the engine cover

Sign off on the fuel filter replacement

Run this procedure

Fuel System Check

Make the machine safe

Access to the engine compartment obtained

Engine compartment, fuel lines and the area below checked for leaks

Is there any leak?

If necessary, contact your JCB dealer

Sign off on the fuel system check

Run this procedure

Drive Belt Adjustment

Loosen the alternator mount bolts. Do not remove them.

Pull the alternator outwards as shown to tension the belt.

Hold the alternator in position and tighten the mount bolts.

Tighten the alternator mount bolts to correct torque value.

Check the belt tension, if necessary repeat the steps from 1 to 4.

Install the belt cover.

Run this procedure

Engine Oil Replace

Warning: Hot oil and engine components can burn you. Make sure the engine is cool before doing this job.

Used engine crankcase lubricants contain harmful contaminants. In laboratory tests it was shown that used engine oils can cause skin cancer.

CAUTION It is illegal to pollute drains, sewers or the ground. Clean up all spilt fluids and/or lubricants.

Used fluids and/or lubricants, filters and contaminated materials must be disposed of in accordance with local regulations. Use authorised waste disposal sites.

Make the machine safe.

Get access to the engine.

Remove the oil filler cap.

Remove the engine oil drain plug. Drain the oil in to a suitable container.

Clean the drain plug. Install the drain plug. Tighten the drain plug to the correct torque value.

Run this procedure

Battery Electrolyte Level Check

WARNING Do not top the battery up with acid. The electrolyte could boil out and burn you.

Maintenance free batteries used in normal temperate climate applications should not need topping up. However, in certain conditions (such as prolonged operation at tropical temperatures or if the alternator overcharges) the electrolyte level should be checked as described below.

1. Open the battery access panel and get access to the battery.

2. Disconnect the battery.

3. Remove the battery from the machine.

4. Remove the covers.

5. Look at the level in each cell.

5.1. Make sure that the electrolyte is above the plates by specified value.

Length/Dimension/Distance: 6mm

Run this procedure
