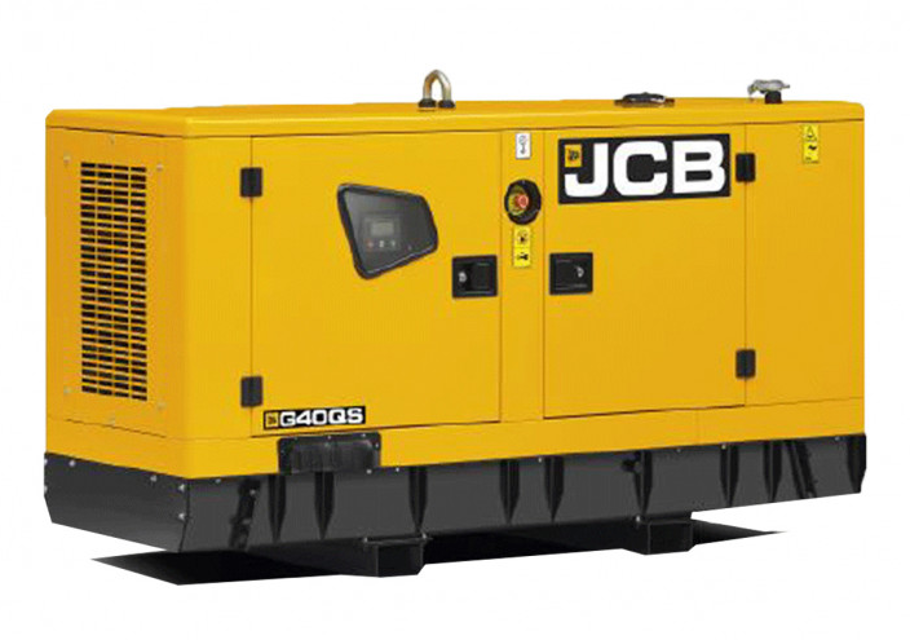

The JCB Generator G40QS is a robust industrial generator designed for reliable power generation in various applications. Known for its durability and efficiency, this model provides essential backup power solutions, ensuring operational continuity in demanding environments.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Generator G40QS

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Generator G40QS

Create an account to install this asset package.

Maintenance Plans for JCB Generator Model G40QS

Integrate maintenance plans directly into your work orders in MaintainX.

Air Filter Check

1. Make the machine safe.

2. Get access to the air filter.

3. Check the system hoses for:

3.1. Condition.

3.2. Damage.

3.3. Security.

4. Replace the system hoses if necessary;

Run this procedure

250 Hourly or 3 Monthly Wheel Loader Maintenance

Safety decals in good condition

Emergency stop switches operational

Earth Leakage RCD and MCB(1) operational

External cartridge dry type air filter changed

Radiator heat-exchange surface checked

Alternator belt tension checked

Sign off on the wheel loader maintenance

Run this procedure

Engine Cleaning

Warning: For trained personnel only. Contamination of the fuel system will cause damage and possible failure of the engine.

The engine or certain components could be damaged by high pressure washing systems; special precautions must be taken if the engine is to be washed using a high pressure system.

Ensure that the engine air intake, alternator, starter motor and any other electrical components are shielded and not directly cleaned by the high pressure cleaning system.

Before carrying out any service procedures that require components to be removed, the engine must be properly cleaned.

Stop the engine and allow it to cool for at least one hour.

Make sure that the electrical system is isolated.

Make sure that all electrical connectors are correctly coupled. If connectors are open fit the correct caps or seal with water proof tape.

Cover the alternator with a plastic bag to prevent water ingress.

Seal the engine air intake, exhaust and breather system.

Run this procedure

500 Hourly or 6 Monthly Wheel Loader Maintenance

External Power Socket Box condition

Battery Terminals and voltage

Control panel events history

Bus bar cover safety switch operation

Alternator and engine mounting bolts tightness

Bus bar terminals tightness

Machine earth connections condition

Engine and controller harness condition and connections

Engine oil Change

Run this procedure

Battery Cleaning

WARNING Keep metal watch straps and any metal fasteners on your clothes, clear of the positive (+) battery terminal. Such items can short between the terminal and nearby metal work. If it happens you can get burned.

Machine made safe

Access to the battery obtained

Terminal posts washed with hot water if corroded and covered with white powder

Upload a photo of the terminal posts after cleaning

Thin layer of petroleum jelly applied to the terminal posts

Sign off on the battery cleaning

Run this procedure
