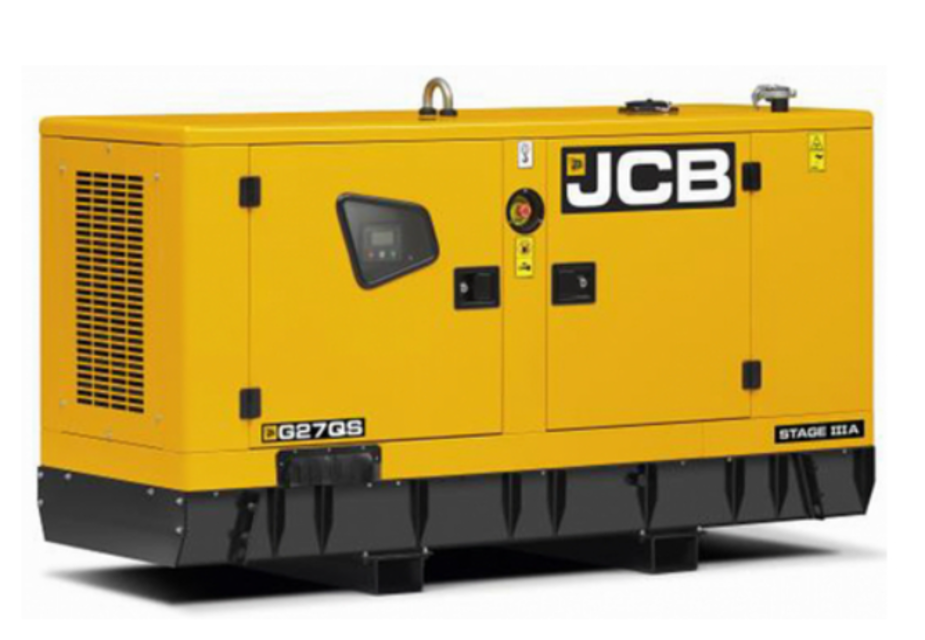

The JCB Generator G27QS is a robust industrial generator designed for reliable power supply in various applications. Known for its durability and efficiency, this model is ideal for construction sites, events, and emergency backup power. Regular maintenance ensures optimal performance and longevity.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Generator G27QS

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Generator G27QS

Create an account to install this asset package.

Maintenance Plans for JCB Generator Model G27QS

Integrate maintenance plans directly into your work orders in MaintainX.

Engine Cleaning

Warning: Contamination of the fuel system will cause damage and possible failure of the engine.

Warning: The engine or certain components could be damaged by high pressure washing systems.

Before carrying out any service procedures that require components to be removed, the engine must be properly cleaned.

Electrical system is isolated

All electrical connectors are correctly coupled

Alternator is covered with a plastic bag

Engine air intake, exhaust and breather system are sealed

Oil filler caps and dipstick are correctly installed

Used a low pressure water jet and brush to soak off caked mud or dirt

Run this procedure

Battery Charge Level Check

Precautions before Charging

Follow all the precautions described below, to prevent damage to the alternator and battery.

1. Make the machine safe.

2. Make sure that the battery negative terminal is connected to the earth cable.

3. Do not connect or disconnect the battery or alternator connections, or any part of the charging circuit while the engine is in operation. If you disregard this instruction, the regulator or rectifying diodes will be damaged.

4. Main output cables are always in active state of current flow even when the engine is not in operation. If the alternator connector is removed, do not earth the moulded plug.

5. When you do arc welding on the machine, remove the moulded plug (or if the separate output cables are installed, remove the cables) to protect the alternator.

6. If it is necessary to jump start the battery then do the steps below.

6.1. Connect the secondary battery in parallel without disconnecting the vehicle battery from the charging circuit.

Run this procedure

Dust Valve Check

Check the dust valve for rips/tears

Check there are no obstructions

Check that the dust valve is free of dirt and dust

Check that the dust valve securely attached to the air filter housing

Run this procedure

250 Hourly or 3 Monthly Wheel Loader Maintenance

Safety decals in good condition

Emergency stop switches operational
