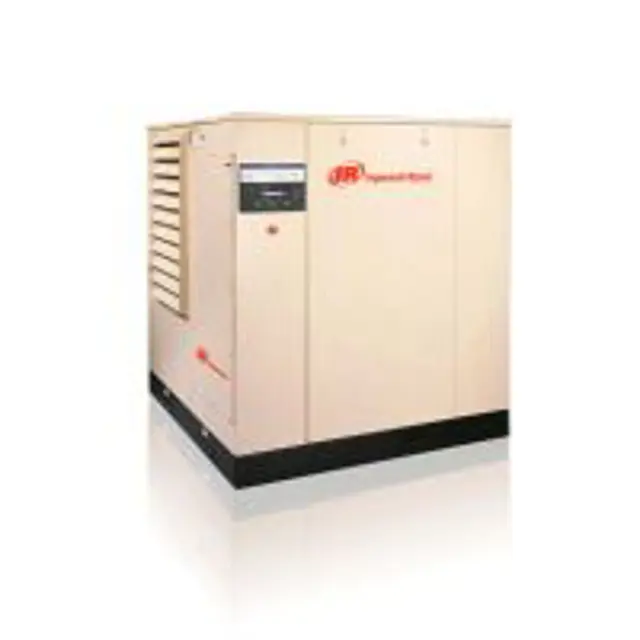

Ingersoll Rand Compressor SSR-XP75

Ingersoll Rand Compressor SSR-XP75

Create an account to install this asset package.

Maintenance Plans for Ingersoll Rand Compressor Model SSR-XP75

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly / 4000 Hourly Separator Cleaning

Check mark

Tools Required: Open end wrench, Pliers

Check mark

The screen/orifice assemblies are similar in appearance to a straight tubing connector and will be located between two pieces of 1/4 inch O.D. scavenge line tubing.

Check mark

The main body is made from 1/2 inch hexagon shaped steel and the diameter of the orifice and a direction-of-flow arrow is stamped in flat areas of the hexagon.

Check mark

A removable screen and orifice is located in the exit end of the assembly and will require cleaning.

Check mark

To remove the screen/orifice, disconnect the scavenge line tubing from each end. Hold the center section firmly and use a pair of pliers to gently grasp the exit end of the assembly that seals against the scavenge line tubing.

Check mark

Pull the end out of the center section while using care to prevent damage to the screen or sealing surfaces.

Check mark

Clean and inspect all parts prior to reinstallation.

Check mark

When the assembly is installed, confirm the direction of flow to be correct. Observe the small arrow stamped in the center section and ensure the direction flow to be from the separator tank to the airend.

Check mark

Sign off on the separator cleaning

Run this procedureArrow right

6 Monthly / 2000 Hourly Coolant Filter Replacement

Check mark

Warning: This procedure should be performed in a clean environment and requires trained personnel with PPE!

Check mark

Is the operating environment extremely dirty?

Check mark

If yes, change coolant, filters, and separator elements more frequently.

Check mark

Has the coolant filter been changed in the last 150 hours of operation?

Check mark

If no, proceed to change the coolant filter.

Check mark

Is a suitable device available for loosening the old element?

Check mark

If no, acquire a suitable device before proceeding.

Check mark

Is a drain pan available to catch any leakage during removal?

Check mark

If no, acquire a drain pan before proceeding.

Run this procedureArrow right

9 Monthly / 2000 Hourly Motor Lubrication

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

All 60 Hz ODP drive motors and all fan motors.

Check mark

Grease relief along shaft can occur, precluding necessity of removing this plug if inaccessible.

Check mark

The inlet grease gun fittings and outlet plugs (or spring-loaded reliefs) are located at each end of the motor housing.

Check mark

The drive end reliefs protrude out the circumference of the lower portion of the end bell near a flange bolt.

Check mark

The drive end outlet plugs are located just behind the flange in the air intake area at about the 5 or 6 o’clock position.

Check mark

Free drain hole of any hard grease (use piece of wire if necessary).

Check mark

Use a hand lever type grease gun.

Check mark

Determine in advance the quantity of grease delivered with each stroke of the lever.

Run this procedureArrow right

6 Monthly / 4000 Hourly Air Compressor Maintenance

Check mark

Clean - Cooler cores

Check mark

Clean cooler cores if discharge air temperature is excessive or if unit shutdown occurs on high air temperature.

Check mark

Ensure that the compressor is isolated from the compressed air system by closing the isolation valve and venting pressure from the drip leg.

Check mark

Ensure that the main power disconnect switch is locked open and tagged.

Check mark

Tools Required

Check mark

■ Screwdriver

Check mark

■ Wrench set

Check mark

■ Air hose equipped with approved O.S.H.A. nozzle.

Check mark

On units sold outside the U.S.A. consult local codes.

Run this procedureArrow right

9 Monthly / 1000 Hourly Motor Lubrication

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

All 60 Hz TEFC drive motors.

Check mark

Grease relief along shaft can occur, precluding necessity of removing this plug if inaccessible. The inlet grease gun fittings and outlet plugs (or spring-loaded reliefs) are located at each end of the motor housing. The drive end reliefs protrude out the circumference of the lower portion of the end bell near a flange bolt.

Check mark

The drive end outlet plugs are located just behind the flange in the air intake area at about the 5 or 6 o’clock position.

Check mark

Free drain hole of any hard grease (use piece of wire if necessary).

Check mark

Use a hand lever type grease gun. Determine in advance the quantity of grease delivered with each stroke of the lever. A graduated cylinder showing cubic centimeters (cc) may be used, or a 35mm film canister can give a close approximation for 2 cubic inches when filled.

Check mark

Add the recommended volume of the recommended lubricant. Do not expect grease to appear at the outlet, but if it does, discontinue greasing at once.

Check mark

Run motor for about 30 minutes before replacing outlet plugs or reliefs. BE SURE TO SHUT MOTOR DOWN, DISCONNECT POWER, LOCK OUT AND TAG, AND REPLACE THESE DRAIN FITTINGS TO PRECLUDE LOSS OF NEW GREASE AND ENTRANCE OF CONTAMINANTS!

Check mark

Sign off on the motor lubrication

Run this procedureArrow right
