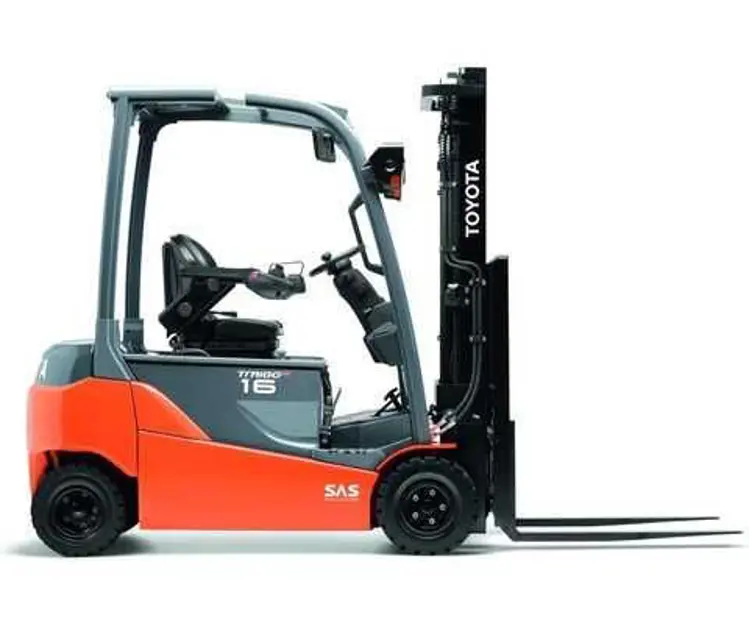

Toyota Forklift 8FBMK16T

1) Lower the forks to the ground, tilt the mast forwards and switch off the machine.

2) Disconnect the battery connector.

4) Disconnect the mast pressure sensor wiring harness.

5) Remove the mast pressure sensor (tightening torque T = 26 Nm).

The assembly procedure is the reverse of the disassembly procedure.

After replacing the sensor, the vehicle settings must be repeated (see heading CALIBRATIONS).;

2) Remove the accelerator pedal and the brake pedal and relative wiring harnesses.

3) Disconnect the distributor wiring harness.

4) Remove the distributor supports and flexible pipes / rigid pipes.

The assembly procedure is the reverse of the disassembly procedure.

NOTICE! Check the hydraulic oil level and add more if insufficient.;

Warning: This test requires trained personnel with PPE!

Mast placed in the vertical position with a nominal load on the forks

Hose disconnected from the distributor to the oil tank

If the oil level exceeds the standard specified, check the tilting cylinder assembly or the tilting valve

Enter the standard oil level (7.5 cc or less)

REAR AXLE UNIT - 3 WHEEL VERSION

1) Lock the front wheels with wooden blocks.

2) Jack up the rear of the vehicle and remove the rear wheels.

3) Disconnect the wiring harness and power cables from the logic unit.

The assembly procedure is the reverse of the disassembly procedure.

1) Remove the lifting rollers. [Point 1]

The assembly procedure is the reverse of the disassembly procedure.

SST 09950-76014-71 (09950-40011)

Install the rollers making sure they face the right direction.;
