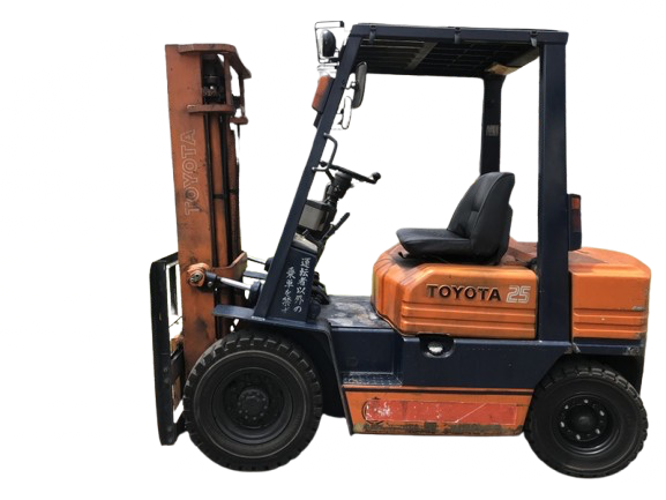

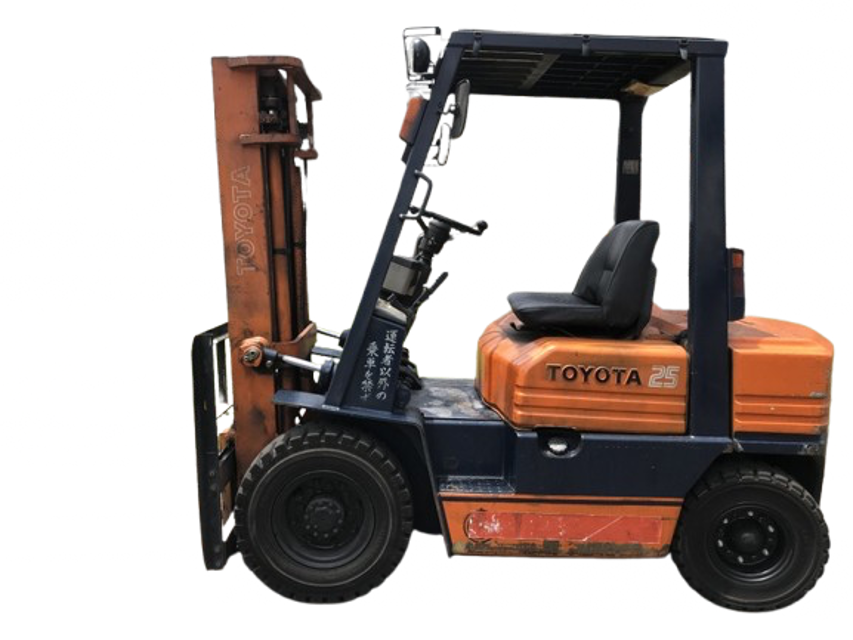

Toyota Forklift 02 - 5FD25

Inspect loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw and rod end

Measure natural drop and natural forward tilt

Inspect for oil leaks and damage in the cylinder

Inspect for wear and damage of the pin and cylinder bearing

Inspect for oil leaks and abnormal sound from the oil pump

Torque converter oil filter replaced

Cyclone air cleaner element replaced

Brake valve rubber parts replaced

Cups and seals for brake master and wheel cylinders replaced

Inspect fork and stopper pin for abnormality

Inspect for misalignment between left and right fork fingers

Inspect each part for deformation, damage, and cracks at welded parts

Inspect mast and lift bracket for looseness

Inspect wear, damage, and rotating condition of rollers

Inspect mast trip for wear and damage

Inspect tension, deformation, and damage of chain

Inspect for abnormality in chain anchor bolt

Inspect head guard for cracks at welded portions

Inspect head guard for deformation and damage

Retighten for loosening of mounting in the back-rest

Inspect back-rest for deformation, cracks, and damage

Inspect the function and mounting condition of the lighting system

Inspect horn function and mounting condition

Inspect the function and mounting condition of the direction indicator

Inspect the functions of the instruments

Inspect the function and mounting condition of the backup buzzer
