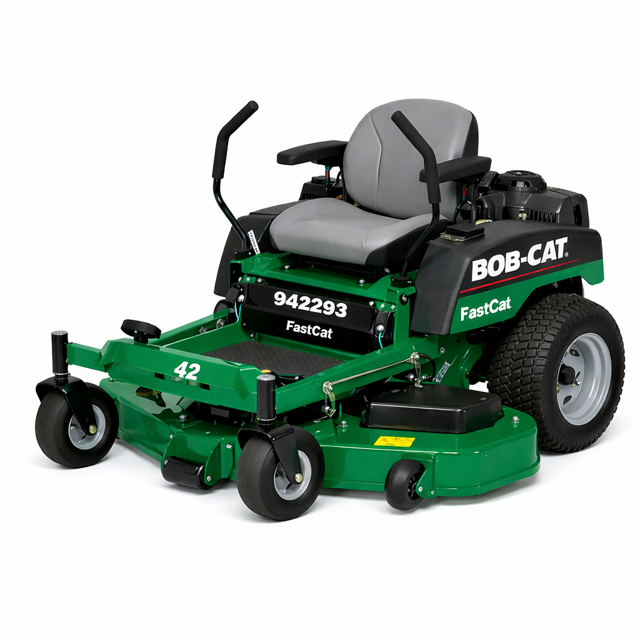

Bobcat Side Discharge Mower 942293

Warning: For trained personnel only

Wire I at clutch M disconnected

Bolts J and torque restraint removed

Transaxle drive belt removed using a ratchet with a 9/16\ socket"

New transaxle drive belt installed

Fans inspected and replaced if worn or damaged

Torque transaxle pulley nut to 28.3-41.6 ft-lbs (38-56 Nm)

Perform engine maintenance with the engine off, spark plug wires disconnected and PTO disengaged.

Remove drain cap at location D and drain the crankcase.

Upload a photo of the drained crankcase

Dispose of used oil in accordance with local requirements.

Warning: Battery acid is caustic and fumes are explosive and can cause serious injury or death. Use insulated tools, wear protective glasses or goggles and protective clothing when working with batteries. Read and obey the battery manufacturer’s instructions. Be certain the ignition switch is OFF and the key has been removed before servicing the battery.

Verify battery polarity before connecting or disconnecting the battery cables.

When installing the battery, always assemble the RED, positive ( + ) battery cable first and the BLACK ground, negative ( - ) cable last.

When removing the battery, always remove the BLACK ground, negative ( - ) cable first and the red, positive ( + ) cable last.

Check the electrolyte level every 100 hours of operation or yearly, whichever comes first. Top off with distilled water if necessary.

NOTE: Sealed batteries cannot be checked or topped off.

Clean the cable ends and battery posts with steel wool. Use a solution of baking soda and water to clean the battery. Do not allow the solution to enter into the battery cells.

Tighten cables securely to battery terminals and apply a light coat of silicone dielectric grease to terminals and cable ends to prevent corrosion. Keep terminal covers in place.

Sign off on the battery maintenance

Machine supported with rear wheels off the ground

Traction levers moved to neutral lock position and seat raised

Seat switch wire disconnected and terminals connected with jumper wire J

Engine started and running at low speed

Parking brake moved to OFF position

Jam nuts K at both ends of control rod L loosened

Control rod rotated until corresponding wheel stops turning

Control rod jam nuts locked and adjustment checked

NOTE: Always use CGC, Inc. replacement belts, not general purpose belts. CGC, Inc. belts are specially designed for use on this mower and will normally last longer.

Set the cutterdeck in a middle height-of-cut position

Use a 3/8\ ratchet and extension to back tensioning idler off to remove belt from idler"

Remove belt from cutterdeck pulleys

NOTE: Use the 3/8\ ratchet in the square hole A on the idler."

Install the new belt by performing these steps in reverse order

Sign off on the belt replacement
