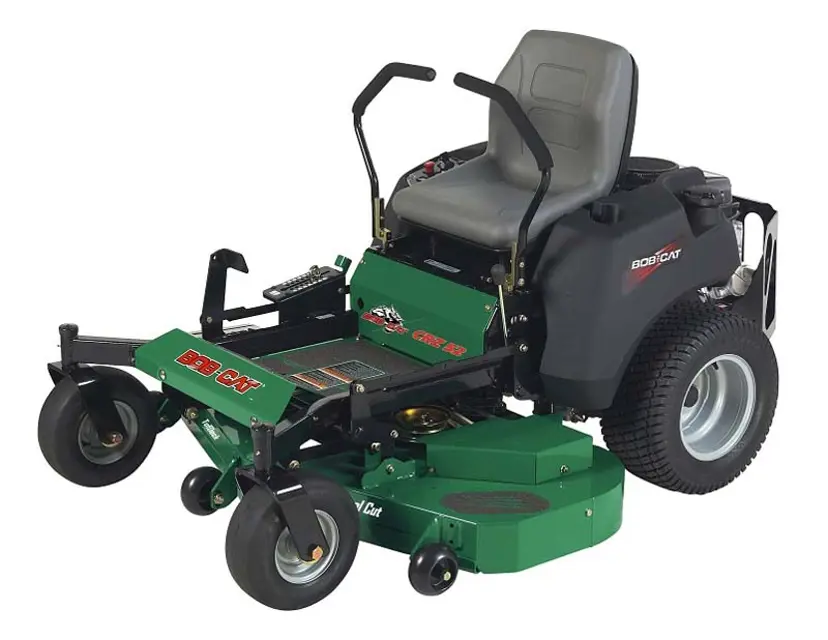

Bobcat Side Discharge Mower 942633

NOTE: Always use Schiller Grounds Care, Inc. replacement belts, not general purpose belts. Schiller Grounds Care, Inc. belts are specially designed for use on this mower and will normally last longer.

Set the cutterdeck in a middle height-of-cut position

Use a 3/8\ ratchet and extension to back tensioning idler off to remove belt from idler"

Remove belt from cutterdeck pulleys

NOTE: Use the 3/8\ ratchet in the square hole A on the idler."

Install the new belt by performing these steps in reverse order

Sign off on the belt replacement

Warning: Blade balance must be maintained at 5/8 oz-in (19.4 g-cm) or less. Failure to keep blades balanced causes excess vibration, wear, and shortened life of most components of the machine.

Balance the blade at the center

Attach a 1/8 oz (3.9 g) weight at a distance 5\ (127 mm) from center on the light end"

Does the addition of the weight make the light end the heavy end?

If it does not, file or grind the heavy end until the addition of the weight makes the light end the heavy end.

Sign off on the blade adjustment

Traction levers in the neutral lock position

Engine cranks with parking brake off

Engine cranks with either traction lever out of neutral lock

Engine runs at 1/2 throttle with operator raised off the seat

Every 50 hours of operation, lubricate the following points (1-3) with grease:

1. Idler Pulley (1 point-Located under footplate)

2. Deck lift pivots (4 points)

3. Caster wheel pivots (2 points)

(Lubricate every 500 hours or once a year)

NOTE ON BLADE SPINDLES - The blade spindles on these machines use a superior sealed bearing that does not require relubrication.;

Warning: This procedure requires trained personnel with PPE!

Drive wheels raised and supported?

With the bypass valves open, and the engine running, slowly move the control levers in both forward and reverse directions 5 to 6 times.

With the bypass valve closed, and the engine running, slowly move the control levers in both forward and reverse directions 5 to 6 times.

Transaxle fluid level after purging

Repeat steps 3-5 until all the air is completely purged from the system.

Does the transaxle move forward and reverse at normal speed?
