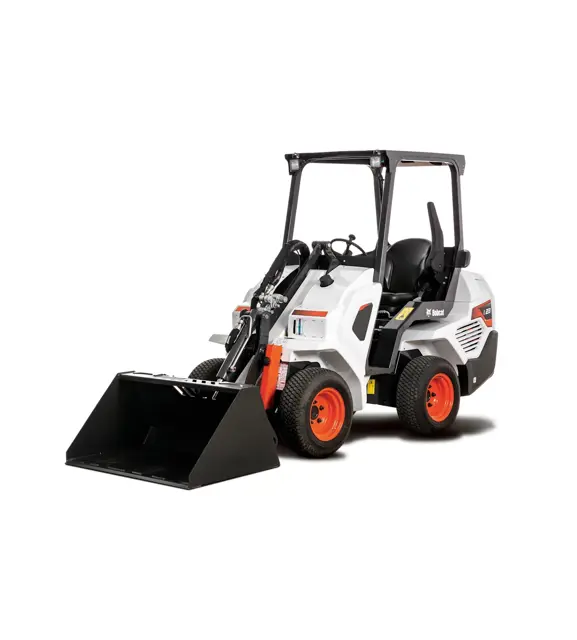

The Bobcat Articulated Wheel Loader L23 is a versatile and efficient piece of industrial equipment designed for various construction and landscaping tasks. Known for its maneuverability and power, this loader is ideal for operators seeking reliability and performance in tight spaces.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bobcat Articulated Wheel Loader L23

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Bobcat Articulated Wheel Loader L23

Create an account to install this asset package.

Maintenance Plans for Bobcat Articulated Wheel Loader Model L23

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hours/ 1 Yearly Excavator Maintenance

Engine Air Filter replaced

Hydraulic Filter (6668819) replaced

Hydraulic Fill / Breather Cap (6692836) replaced

Sign off on the excavator maintenance

Run this procedure

250 Hours/ 1 Yearly Loader Maintenance

Engine Oil Filter (6657635) replaced?

Type of Engine Oil used

Fuel Filter (6667352) replaced?

Battery (7269858) checked and adjusted/replaced if needed?

Drive Belts (Alternator, Water Pump) checked and adjusted/replaced if needed?

Lift Arm Wear Pads checked and adjusted/replaced if needed?

Sign off on the loader maintenance

Run this procedure

50 Hours Loader Maintenance

Check condition / proper operation of Wheel Nuts

Adjust or replace Wheel Nuts as needed

Upload a photo of the replaced Wheel Nuts

Replace Engine Oil Filter (6657635), Engine Oil, SAE 15W40, SAE 10W30, SAE 5W40 first time only

Check condition / proper operation of Hydraulic Hoses And Tubelines

Adjust or replace Hydraulic Hoses And Tubelines as needed

Upload a photo of the replaced Hydraulic Hoses And Tubelines

Check condition / proper operation of Parking Brake, Foot Pedals, And Steering Wheel

Adjust or replace Parking Brake, Foot Pedals, And Steering Wheel as needed

Run this procedure

1000 Hours/ 2 Yearly Loader Maintenance

Engine Coolant replaced with Propylene Glycol

Hydraulic Fluid replaced

Condition / proper operation of Fuses checked

Condition / proper operation of Engine Valves checked

Action taken on Fuses

Action taken on Engine Valves

Sign off on the loader maintenance

Run this procedure

10 Hours/ 1 Daily Loader Maintenance

Check condition / proper operation of Operator Interlock Control System (OICS). Adjust or replace as needed

Check condition / proper operation of Front Horn / Back-Up Alarm. Adjust or replace as needed

Check condition / proper operation of Fresh Air / Recirculation Filter (If Equipped). Adjust or replace as needed. Clean Cab Air Filter (If Equipped) (7406119)

Check condition / proper operation of Indicators And Lights. Adjust or replace as needed

Check condition / proper operation of Safety Signs And Safety Treads. Adjust or replace as needed

Check condition / proper operation of Tires. Adjust or replace as needed

Check condition Engine Coolant. Adjust or replace as needed

Check condition / proper operation of Wheel Nuts. Adjust or replace as needed. Service every 10 hours or daily for the first 30 hours

Check condition / proper operation of Fuel Filter – Water Separator. Adjust or replace as needed

Run this procedure
