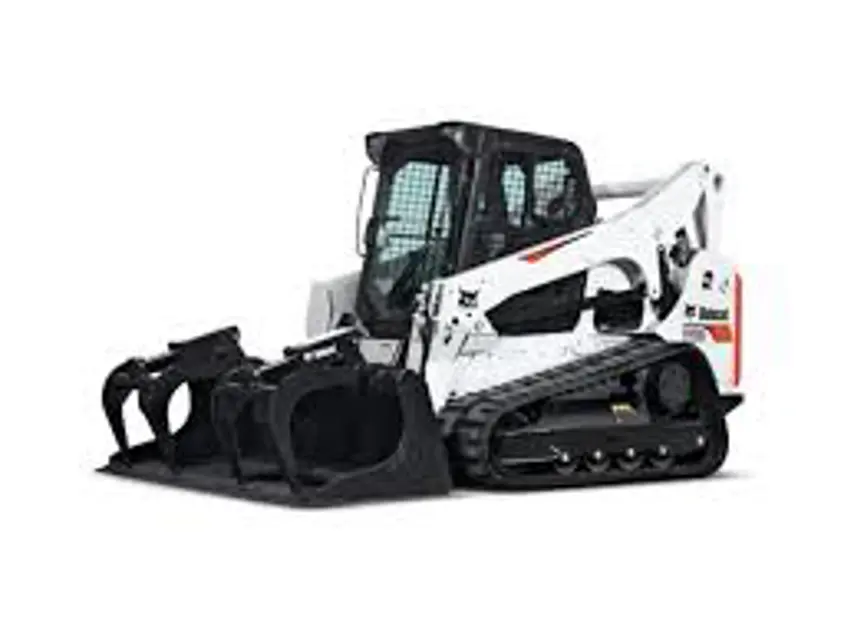

Bobcat Mini Track Loader (A3P811001) T770

Used fluid disposed in an environmentally safe manner

Surface of the filter housing and the filter base cleaned

Remove the filter element (Item 2) [Figure 10-100-3]

Clean the area around the filter housing

Put clean oil on the seal of the new filter element

Install the fuel filter, and hand-tighten it

Remove air from the fuel system. (See Removing Air From The Fuel System on Page 10-100-3)

Open the vent (Item 1) [Figure 10-100-4] on the fuel filter housing

Squeeze the hand pump (priming bulb) (Item 2) [Figure 10-100-4] until fuel flows from the vent with no air bubbles

Close the vent (Item 1) [Figure 10-100-4]

Warning: Always clean up spilled fuel or oil. Keep heat, flames, sparks or lighted tobacco away from fuel and oil. Failure to use care around combustibles can cause explosion or fire.

Warning: Diesel fuel or hydraulic fluid under pressure can penetrate skin or eyes, causing serious injury or death. Fluid leaks under pressure may not be visible. Use a piece of cardboard or wood to find leaks. Do not use your bare hand. Wear safety goggles. If fluid enters the skin or eyes, get immediate medical attention from a physician familiar with this injury.

Hydraulic / Hydrostatic Filter present and functional?

Hydraulic Reservoir present and functional?

Hydraulic fill cap (Item 1) and two rubber straps (Item 2) present and functional?

Oil cooler (Item 1) and bar (Item 2) present and functional?

Right side access cover bolts (Item 1) and cover present and functional?

Clamp (Item 1) and hose (Item 2) present and functional?

Side access cover and bolts present and functional?

Warning: Ensure the machine is off and cool before starting the procedure.

Open the rear door and remove the rear grille

Attach a hose to the coolant drain petcock (Item 1) [Figure 10-90-7] located to the left of the oil filter assembly.

Open the petcock and drain the coolant into a container

Close the petcock and remove the hose.

Recycle or dispose of coolant in an environmentally safe manner

Warning: Ensure to wear safety gloves and goggles before starting the procedure.

Open the rear door and remove the rear grille

Attach a hose to the coolant drain petcock (Item 1) [Figure 10-90-7] located to the left of the oil filter assembly.

Open the petcock and drain the coolant into a container

Close the petcock and remove the hose.

Recycle or dispose of coolant in an environmentally safe manner

Mix new coolant in a separate container. (See Capacities on Page SPEC-10-5.)
