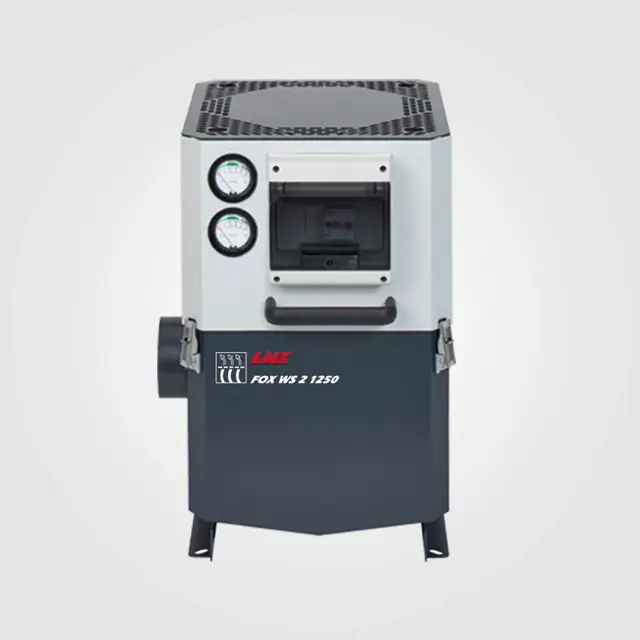

LNS Oil & Coolant Mist Collector WS2 1020

Release the latches and lift the movable part

Unscrew the knob and remove the knob

Unscrew the nuts on the impeller case

Remove the impeller for cleaning only if necessary

Clean and remove any deposits from inside the impeller case and the drainage ring

Carefully clean the stop flange of the impeller case on the drainage ring

Reassemble the impeller case and drainage ring and tighten its nuts

Release the safety spring and open the latches

Use the provided handle to lift the movable casing until it opens completely

CAUTION! Cleaning must not be done with metal tools such as spatulas, brushes or other abrasive objects which may remove or damage the protective layer and sealing of the walls and bottom of the unit.

Remove the top and the prefilter microexpanded metal (if installed)

If necessary, clean the prefilter microexpanded metal with a brush

Open the velcro closure and remove the prefilter media

DANGER! Do not remove the main filter for any reason while the unit is on.

Removing the main filter while the unit is on will expose you to hazards of a mechanical nature (dragging, cutting, shearing etc.) due to rotation of the impeller.

To prevent the filter from being removed manually by unauthorized personnel, tighten the nut on the main filter with a tool.

Pressure level given by the pressure gauge located beside the control panel.

Initial pressure value at 60 Hz – 160±50 Pa

NOTE! The initial pressure values (with clean filters) are indicative and may vary due to extraction system features.

Protective grille removed by turning the magnetic catches or with ¼ turn

Nut on the main filter stage unscrewed

CAUTION! Carry out periodic checks following the below timetable to prevent hazards to exposed persons and/or damages to the unit.

Integrity of casings, sheaths and electric cables

Continuity of equipotential protection circuit

Integrity of the support structural parts of the motor-impeller unit

Integrity and efficiency of gas springs for lifting

Integrity of anti-vibration mounts and tightness of relative screws
