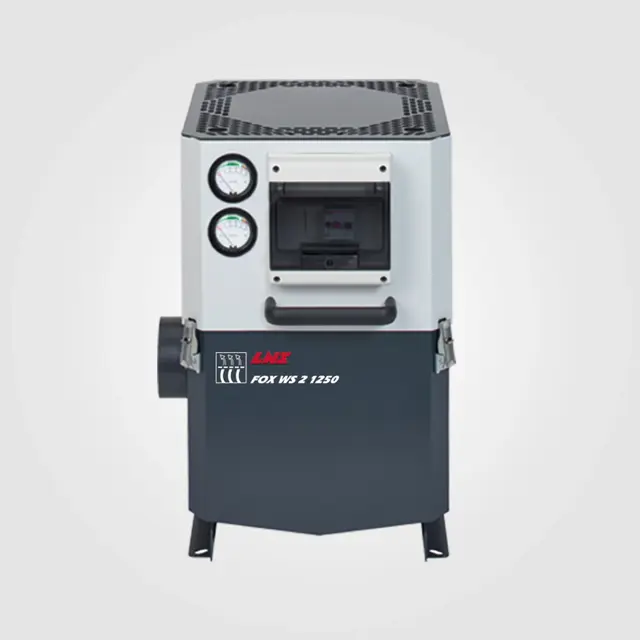

LNS Oil Mist Collector WS-1250

Create an account to install this asset package.

Maintenance Plans for LNS Oil Mist Collector Model WS-1250

Integrate maintenance plans directly into your work orders in MaintainX.

5000 Hours Collector Check

CAUTION! Period checks must be performed in accordance to the following maintenance table in order to avoid potential damages to people or to the unit

Integrity of electrical boxes

Verify continuity of protective bonding circuit

Integrity of structural parts relative to the motor support plate

Tighten of nuts securing the motor

Tighten screw securing impeller

Integrity and efficiency of gas charged springs

Integrity of anti vibrations mounts and securing of relative bolts

Sign off on the 5000 hours collector check

Run this procedure

1000 Hours Pre-filtration (stage 1) Maintenance

Unlock and open draw latches

Hold the handle and lift the upper part of the unit

Unscrew wing nut securing the prefilter

Remove the prefilter cartridge

CAUTION! Cleaning must NOT be undertaken with tools such as metallic brushes in order to avoid possible damages to the surfaces and to the internal sealing of the case

Unscrews prefilter wind nut

Remove upper cover and the outer metallic filtration stage (emulsion version only). If clogged, it must be cleaned with a brush

Remove the filter media

Carefully remove possible residuals from the bottom of the unit

Run this procedure

2000 Hours Centrifugal Filtration (stage 2) Maintenance

Unlock the 2 draw latches hinges and lift the upper part of the unit

Unscrew knob and remove filter

Unscrew nuts securing impeller case/drainage ring

If necessary, proceed with the removal of the impeller

Clean and remove residuals from the inside of the impeller case and of the drainage ring

Clean with accuracy drainage ring and impeller case

Reinstall impeller case, drainage ring and tight relative nuts

Remove impeller case for cleaning

Unscrew main screw and using a special extractor remove the impeller

Run this procedure

Main Filter (stage 3) Maintenance

DANGER! Never remove the main filter (stage 3) while the unit is on. Removal of main filter while the unit is functioning can result in mechanical damages due to the rotation of the impeller.

Max Pressure at 60 Hz – 900 Pa

DANGER! Do not remove the main filter cartridge (stage 3) while the unit is on. In order to avoid accidental removal of this filter by unauthorized personnel secure the nut with a tool.

Removal of this filter, while the unit is on, can cause dangerous mechanical problems due to rotation of the impeller

Check pressure gauge

Remove upper cover (WS170-300-1700 with magnetic catches)

Remove upper cover (WS1020, WS1250 with Quarter Turn Fasteners) unscrew nut

Remove main filter cartridge

Replace the filter cartridge with a new one and securing it with the nut

Run this procedure
