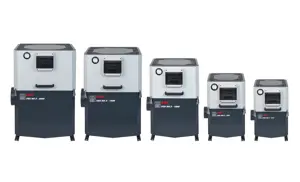

LNS Air Purifier FOX WS2-330

Create an account to install this asset package.

Maintenance Plans for LNS Air Purifier Model FOX WS2-330

Integrate maintenance plans directly into your work orders in MaintainX.

2000 Hourly Air Purifier Maintenance

Impeller Case Inspection

Drainage Ring Inspection

Impeller Inspection

Liquid exhausting tube cleaning

Sign off on the air purifier maintenance

Run this procedure

1000 Hourly Air Purifier Maintenance

1. Prefilter Compartment Cleaning

2. Prefilter Inspection

3. Liquid exhausting tube inspection.

Run this procedure

Impeller Cleaning

CAUTION: Personal safety– unit integrity. It is advisable to replace screws and washers with new components that are identical to the originals. Original nuts and bolts can only be reused if they are in perfect condition. Comply with the torque specifications and apply the threadlocker as indicated.

Follow the below procedure for cleaning the impeller only if effectively necessary:

 Remove the impeller case

 loosen the middle screw and remove the impeller with the provided extractor using the slot made on the hub.

 during disassembly, do not use the bottom or other parts of the impeller for leverage

 to prevent unbalancing of the impeller, deposits must be completely removed using a brush that has been soaked in petroleum or other degreasing cleanser

 do not use acid and alkaline liquids or harsh solvents for cleaning

 when cleaning has been finished, refit the impeller on the motor shaft

 apply medium type LOCTITE or similar product to the screw thread and tighten the screw with the torque setting found on the torque chart

Run this procedure

5000 Hourly Air Purifier Check

CAUTION: Personal safety– unit integrity. Carry out periodic checks following the below timetable to prevent hazards to exposed persons and/or damages to the unit.

Integrity of casings, sheaths and electric cables

Continuity of equipotential protection circuit

Integrity of the support structural parts of the motor-impeller unit

Tightness of motor bolts

Tightness of impeller screws

Integrity and efficiency of gas springs for lifting

Integrity of anti-vibration mounts and tightness of relative screws

If irregularities arise, have the necessary repairs made immediately.

Run this procedure

Main Filter Replacement

Remove the protective grille turning the magnetic catches or with 1⁄4 turn

Unscrew the nut on the main filter stage
