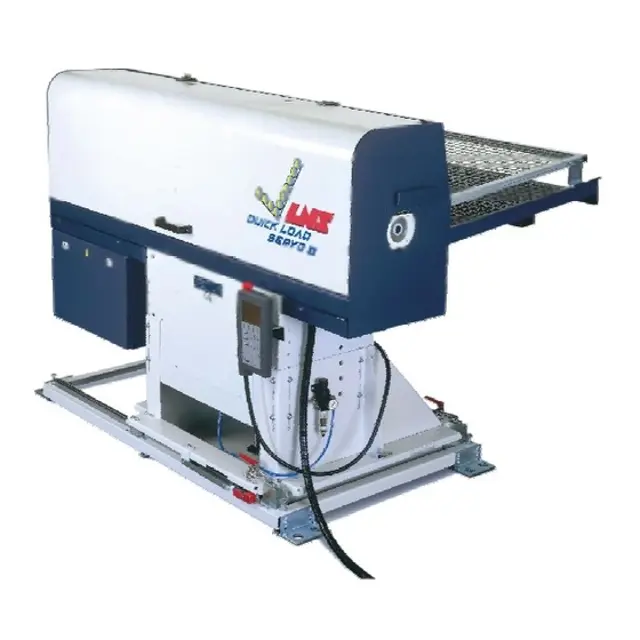

LNS Bar Feeder Quick Load Servo S2

Bring the loading channel into work position (down position)

Undo the set screws (A) of the stop sleeve

Move the feeding pusher forward to the end of the bar position (see Chapter 7, Handling)

Slide the mechanical stop against the guide bushing (B), and then move it back 2 mm (.08\)"

CAUTION: This setting must be done on all feeding pushers when the bar feed system is being installed, and should be modified (not necessarily) only when the clamping device is replaced (collet or chuck). In this case, the end of the bar position should also be adjusted.

Switch the bar feed system in STOP mode (remote station)

Undo the set screw (E) holding the head (C) onto the pusher

Install special disk (D), by pushing it to a stop in the pusher

Sign off on the pusher's head replacement

Warning: Ensure the loading channel is in working mode position (down position) and the bar feed system is in STOP mode (remote station) before starting.

Fastening screws (A) loosened sufficiently to free the groove (C)

Pusher (B) slid forward into the guide bushing (E)

Rear of the pusher loosened and guide bushing (E) dislodged

New pusher placed into the opening and guide bushing inserted

Rear of the pusher introduced into the connection piece and pushed to a stop

Fastening screws tightened to lodge into the groove of the pusher

Mechanical stop sleeve properly positioned
