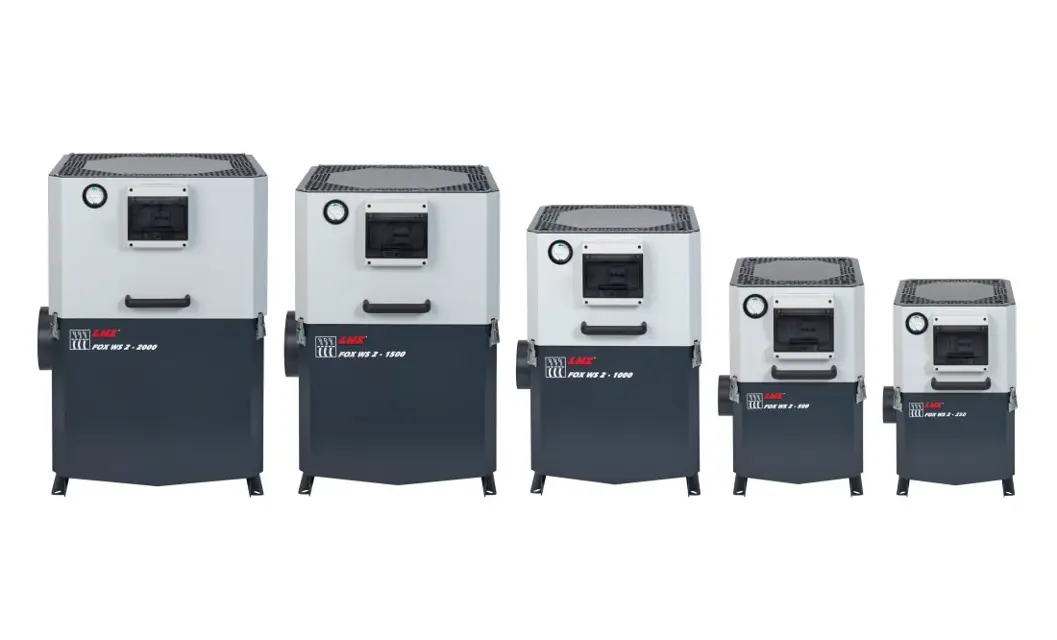

LNS Air Purifier FOX WS2-250
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Main Filter Replacement
Warning: Ensure the machine is turned off and unplugged before starting the procedure.
Protective grille removed
Nut on the main filter stage unscrewed
Cartridge filter removed
Upload a photo of the pressure gauge
Upload a photo of the rear cover with magnetic catches
Upload a photo of the rear cover with catches with 1⁄4 turns
Upload a photo of the main filter release
Upload a photo of the main filter removal
2000 Hourly Air Purifier Maintenance
Impeller Case Inspection
Drainage Ring Inspection
Impeller Inspection
Liquid exhausting tube cleaning
Sign off on the air purifier maintenance
Main Filter Stage Maintenance
CAUTION: Personal safety. Do not remove the main filter for any reason while the unit is on. Removing the main filter while the unit is on will expose you to hazards of a mechanical nature (dragging, cutting, shearing etc.) due to rotation of the impeller.
To prevent the filter from being removed manually by unauthorised personnel, tighten the nut on the main filter with a tool.
Pressure level given by the pressure gauge located beside the control panel.
Note: The initial pressure values (with clean filters) are indicative and may vary due to extraction system features. (tube diameter and length, curves, valves, etc.)
Check if the main filter is clogged
Sign off on the main filter stage maintenance
1000 Hourly Air Purifier Maintenance
1. Prefilter Compartment Cleaning
2. Prefilter Inspection
3. Liquid exhausting tube inspection.
Impeller Cleaning
CAUTION: Personal safety– unit integrity. It is advisable to replace screws and washers with new components that are identical to the originals. Original nuts and bolts can only be reused if they are in perfect condition. Comply with the torque specifications and apply the threadlocker as indicated.
Remove the impeller case
Loosen the middle screw and remove the impeller with the provided extractor using the slot made on the hub.
During disassembly, do not use the bottom or other parts of the impeller for leverage
To prevent unbalancing of the impeller, deposits must be completely removed using a brush that has been soaked in petroleum or other degreasing cleanser
Do not use acid and alkaline liquids or harsh solvents for cleaning
When cleaning has been finished, refit the impeller on the motor shaft
Apply medium type LOCTITE or similar product to the screw thread and tighten the screw with the torque setting found on the torque chart
Reassemble the impeller case and tighten its nuts.
Access the parts list for your equipment in MaintainX.
Prefilter (1St Stage) Type E
350140000
Prefilter (1St Stage) Type O
350375000
Main Filter (3Rd Stage) Type E
350121000
Main Filter (3Rd Stage) Type O
350146000
Cover
350125000
Prefilter (1St Stage) Type E
350140000
Prefilter (1St Stage) Type O
350375000
Main Filter (3Rd Stage) Type E
350121000
Main Filter (3Rd Stage) Type O
350146000
Cover
350125000
Prefilter (1St Stage) Type E
350140000
Prefilter (1St Stage) Type O
350375000
Main Filter (3Rd Stage) Type E
350121000
Main Filter (3Rd Stage) Type O
350146000
Cover
350125000
