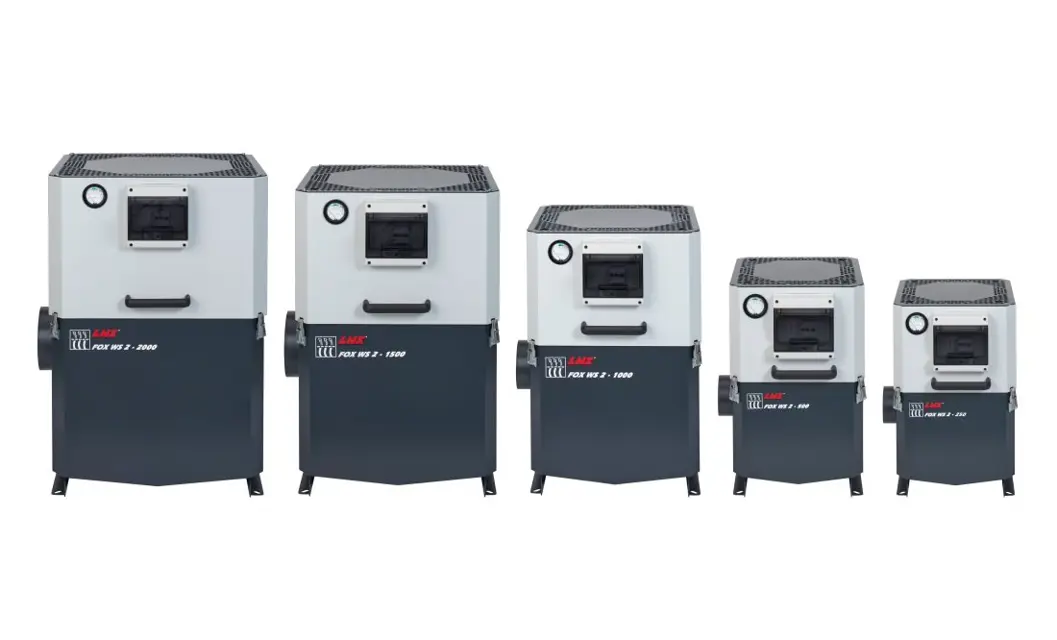

LNS Air Purifier FOX WS2-500

Liquid exhausting tube cleaning

Sign off on the air purifier maintenance

Remove the protective grille turning the magnetic catches or with 1⁄4 turn

Unscrew the nut on the main filter stage

Upload a photo of the pressure gauge

Upload a photo of the rear cover with magnetic catches

Upload a photo of the rear cover with catches with 1⁄4 turns

Upload a photo of the main filter release

Upload a photo of the main filter removal

Upload a photo of the main filter lock

Remove any sealant residue using a sharp blade

Degrease the contact surfaces on the fixed casing with alcohol or other degreasing product

Dry the contact surfaces completely

Prepare the seal and check that it is the proper length

Apply a light layer of cyanocrylate (Loctite or similar product) to the contact surface and make the seal adhere, ensuring it is positioned perfectly along the perimeter.

Release the safety spring and open the latches

Use the provided handle to lift the movable casing until it opens completely

CAUTION: Unit integrity. Cleaning must not be done with metal tools such as spatulas, brushes or other abrasive objects which may remove or damage the protective layer and sealing of the walls and bottom of the unit.

Remove the top and the prefilter microexpanded metal (if installed)

If necessary, clean the prefilter microexpanded metal with a brush

Open the velcro closure and remove the prefilter media

CAUTION: Personal safety– unit integrity. Carry out periodic checks following the below timetable to prevent hazards to exposed persons and/or damages to the unit.

Integrity of casings, sheaths and electric cables

Continuity of equipotential protection circuit

Integrity of the support structural parts of the motor-impeller unit

Integrity and efficiency of gas springs for lifting

Integrity of anti-vibration mounts and tightness of relative screws

If irregularities arise, have the necessary repairs made immediately.
