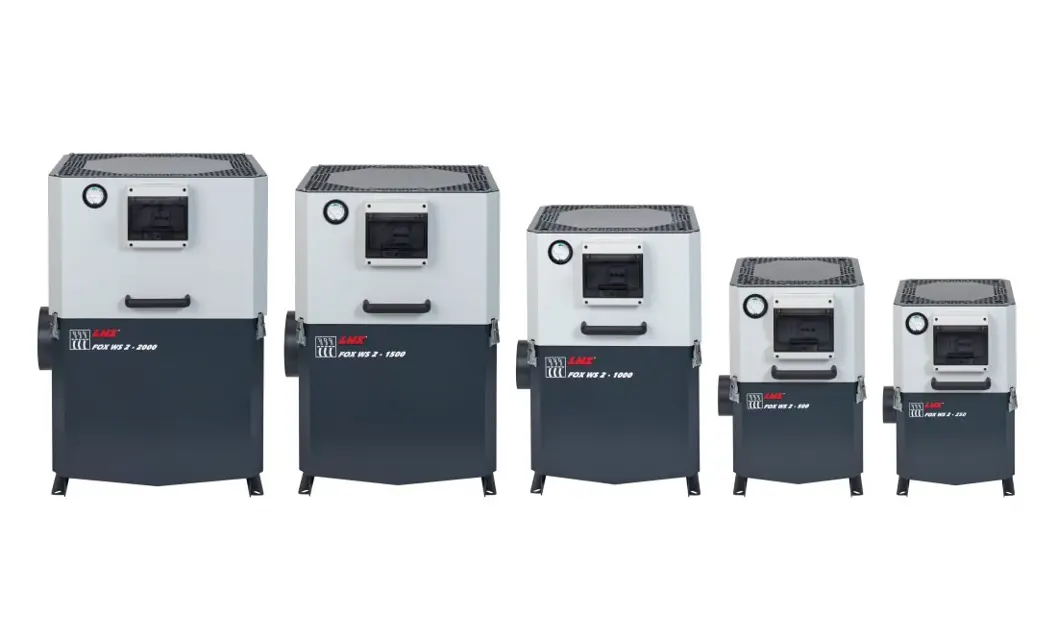

LNS Air Purifier FOX WS2-1500

CAUTION: Personal safety. Do not remove the main filter for any reason while the unit is on. Removing the main filter while the unit is on will expose you to hazards of a mechanical nature (dragging, cutting, shearing etc.) due to rotation of the impeller.

To prevent the filter from being removed manually by unauthorised personnel, tighten the nut on the main filter with a tool.

Pressure level given by the pressure gauge located beside the control panel.

Note: The initial pressure values (with clean filters) are indicative and may vary due to extraction system features. (tube diameter and length, curves, valves, etc.)

Check if the main filter stage is clogged

Sign off on the main filter stage maintenance

Normally the centrifugal stage does not require maintenance, as the design of the impeller makes that stage self-cleaning with continuous extraction of re-condensed liquids. For some particular applications, it may be necessary to periodically clean the drainage ring and relative discharge slots following this procedure:

 Release the latches and lift the movable part

 unscrew the knob and remove the knob

 unscrew the nuts on the impeller case

 remove the impeller for cleaning (see Impeller cleaning) only if necessary

 clean and remove any deposits from inside the impeller case and the drainage ring

 carefully clean the stop flange of the impeller case on the drainage ring

 reassemble the impeller case and drainage ring and tighten its nuts

CAUTION: Personal safety– unit integrity. It is advisable to replace screws and washers with new components that are identical to the originals. Original nuts and bolts can only be reused if they are in perfect condition. Comply with the torque specifications and apply the threadlocker as indicated.

Follow the below procedure for cleaning the impeller only if effectively necessary:

 loosen the middle screw and remove the impeller with the provided extractor using the slot made on the hub.

 during disassembly, do not use the bottom or other parts of the impeller for leverage

 to prevent unbalancing of the impeller, deposits must be completely removed using a brush that has been soaked in petroleum or other degreasing cleanser

 do not use acid and alkaline liquids or harsh solvents for cleaning

 when cleaning has been finished, refit the impeller on the motor shaft

 apply medium type LOCTITE or similar product to the screw thread and tighten the screw with the torque setting found on the torque chart

Warning: Ensure the machine is turned off and unplugged before starting the procedure

Nut on the main filter stage unscrewed

Upload a photo of the pressure gauge

Upload a photo of the rear cover with magnetic catches

Upload a photo of the rear cover with catches with 1⁄4 turns

Upload a photo of the main filter release

Upload a photo of the main filter removal

 Release the safety spring and open the latches

 use the provided handle to lift the movable casing until it opens completely

CAUTION: Unit integrity. Cleaning must not be done with metal tools such as spatulas, brushes or other abrasive objects which may remove or damage the protective layer and sealing of the walls and bottom of the unit.

 remove the top and the prefilter microexpanded metal (if installed)

 if necessary, clean the prefilter microexpanded metal with a brush

 open the velcro closure and remove the prefilter media
