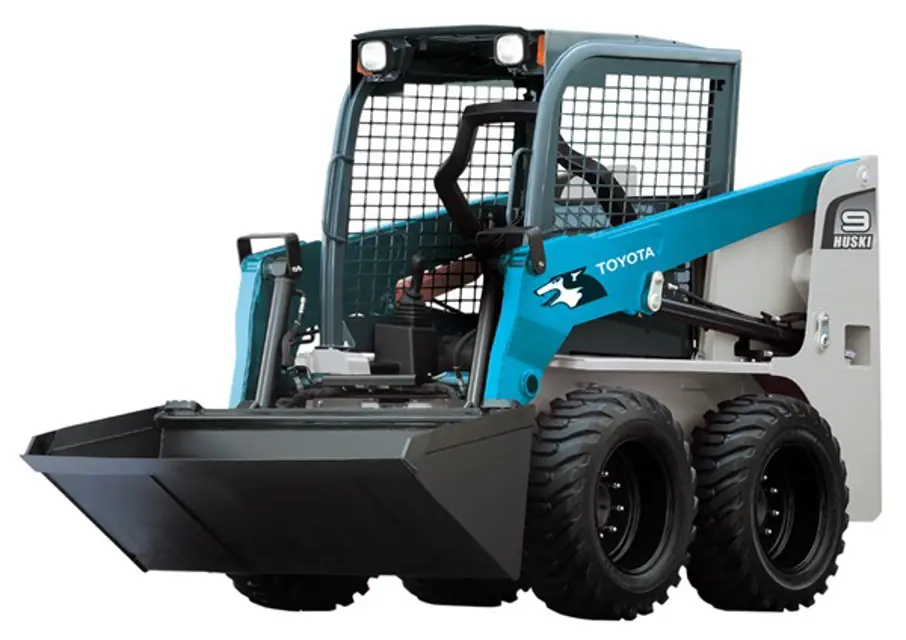

Toyota Skid-Steer Loader 30-5SDK8

- Valve clearance - Measure and correct and adjust as required.

- Compression - Measure and correct and adjust as required.

- Injection nozzle injection pressure and condition - Measure and correct and adjust as required.

- Deformation crack and damage - Inspect and correct and replace as required.

- Bucket welded portion crack - Inspect and correct and replace as required.

1. Cylinder installed portion looseness - Tighten

2. Cylinder and piston rod damage - Inspect and correct and replace as required.

3. Rising speed, dumping speed - Inspect and correct and replace as required.

4. Cylinder operating condition, natural drop, natural forward tilt - Measure and correct and adjust as required.

5. Cylinder oil leak - Inspect and correct and replace as required.

6. Pin and cylinder hearing wear, damage - Inspect and correct and replace as required.

7. Oil leak, abnormal sound - Inspect and correct and replace as required.

Warning: Stop the engine before working on the battery and terminals.

Presence of white powder on the terminal

If white powder is present, pour warm water over it to disable and then grease the terminal.

If terminal is extremely corroded, remove it from the battery, brush off the corrosion using a wire brush or sandpaper, then connect it tightly to the battery and grease the terminal.

Note: Remove the negative terminal (-) first, but replace the same, second.

Be careful not permitting any foreign matter to come into the battery by means of putting the lids tightly in place.

Warning: Be sure to use distilled water for battery electrolyte. Also, wear protective glasses when working on the battery.

Note: Perform battery maintenance after removing the radiator duct. The radiator duct can be removed by loosening the two bolts on its upper face.

The battery electrolyte is between the upper and lower levels (10 to 15 mm from the top of the plates).

If the electrolyte level is below the lower level, did you remove the cap and add distilled water to the upper level through the water inlet port?

Sign off on the battery electrolyte check

Warning: This procedure requires trained personnel with PPE!

Was the machine operating under hard conditions?

If machine was operating under hard conditions, consider a service interval of 170 hours or 1 month.

Sign off on the components replacement
