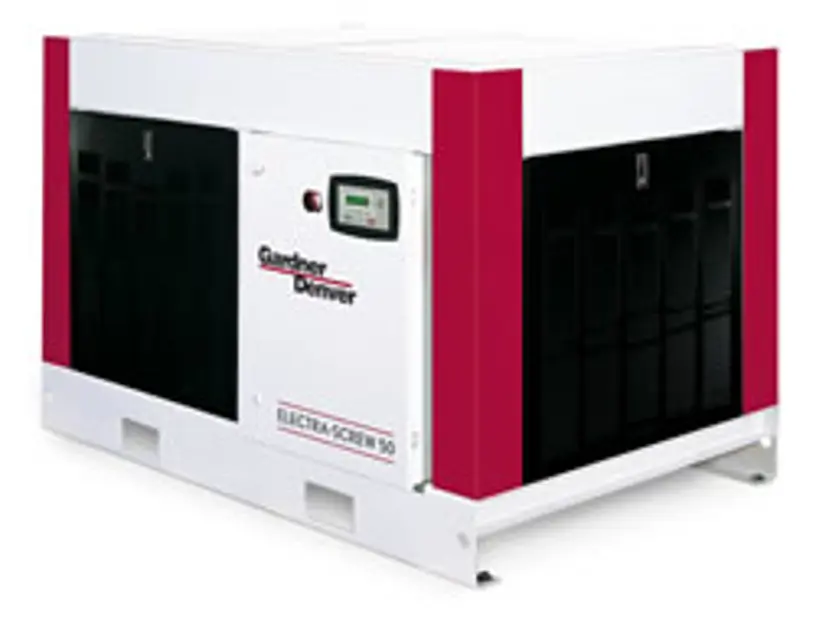

Gardner Denver Compressor EDE99N 50 HP

Did the unit load and unload properly?

Check Panel LED's for advisories

Sign off on the 8 Hourly Compressor Maintenance

Warning: Ensure the unit is off and all system pressure is relieved before starting.

Power supply to the starter disconnected, tagged and locked out

Top plate screws removed from the separator housing

Separator lifted from the separator housing

Separator inspected and/or replaced as necessary. O-Ring not damaged and greased.

Gasket material removed from the top of the plate or separator housing, and new gasket installed

Separator lowered into the housing and centered on the chamfer. Separator pressed down into the housing without excessive force.

Spacer placed on the indent in the separator. Top plate seated to the separator, spacer and separator housing. All cap screws installed and tightened.

WARNING: Rotating machinery can cause injury or death. Open main disconnect, lockout and tagout power supply to starter before working on the electric motor.

Disconnect, lockout and tagout the unit from the power supply

Remove the relief plug and free hole of hardened grease

Wipe lubrication fitting clean and add grease with a hand-operated grease gun

Leave the relief plug temporarily off. Reconnect unit and run for about 20 minutes to expel the excess grease

Stop the unit. Replace the relief plug

Sign off on the motor lubrication

Warning: Use only genuine Gardner Denver air filter elements on Gardner Denver compressor units.

Warning: Do not oil this element. Do not wash in inflammable cleaning fluids. Do not use solvents other than water. Improper cleaning may damage the element.

Warning: Never operate the unit without the element. Never use elements that are damaged, ruptured or wet. Never use gaskets that won’t seal. Keep spare elements and gaskets on hand to reduce downtime. Store elements in a protected area free from damage, dirt and moisture. Handle all parts with care.

Remove the wing nut and pull out the filter element.

Visually inspect the element. If cleaning is not necessary, reinstall the filter element.

If the element requires cleaning, wash the element by soaking about 15 minutes in warm water with a mild non-sudsing detergent.

Rinse the element thoroughly with clean water; a hose may be used if the water pressure does not exceed 40 psig (2.8 bar).

Inspect the element for ruptures or cracks in the pleated media; replace the element if any are found.

Inspect the gasket on the bottom (outlet end) of the element; replace the entire element if the gasket is damaged.

Warning: Always wear eye and ear protection and stand clear of the discharge port when testing the relief valve to prevent injury.

Caution: Never paint, lubricate or alter a pressure relief valve. Do not plug vent or restrict discharge.

Danger: Operation of the unit with improper pressure relief valve setting can result in severe personal injury or machine damage. Ensure properly set valves are installed and maintained.

Check the pressure relief valve for proper operation.

Enter the system operating pressure

Was the relief valve tested for proper operation?

Sign off on the compressor maintenance
