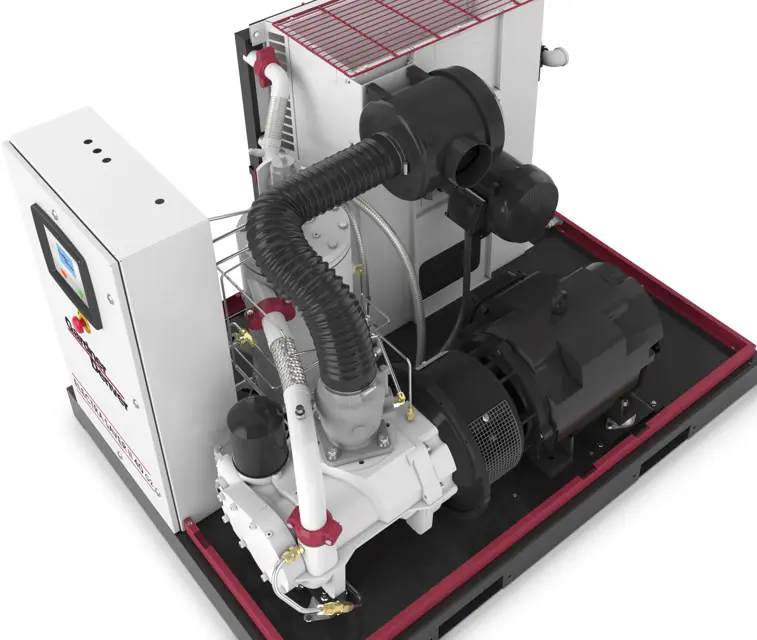

Gardner Denver Compressor ST40-60G2B 60 HP

Inspect and replace if necessary Solenoid Valves / Vacuum

Inspect and replace if necessary BlowDown Valve

Inspect and replace if necessary Thermistor Probes

Inspect and replace if necessary Pressure Transducer

Inspect and replace if necessary Min. Pressure/Check Valve

Inspect and replace if necessary Thermal Mixing Valve

Inspect and replace if necessary The Drive Coupling Spider

Inspect and replace if necessary Hoses

Inspect and repair if necessary Turn valve

Check air/oil reservoir oil level

Is the machine loading and unloading properly?

Check control panel for advisory text messages

Inspect, clean if necessary scavenge line, replace check

Inspect, service if necessary Inlet Valve

Visually check for leakage Shaft Seal

Inspect, re-grease if necessary Motor Bearings

Inspect, Replace if necessary Drive Belts (if app.)

Sign off on the compressor maintenance

Visual inspection indicates a rupture, crack or pin hole in the pleated media

Inspection should be done by placing a bright light inside the element

Pressure drop through a filter with a freshly cleaned element

If pressure drop is below three (3) inches (76 mm) of water with the compressor running at full load - this would indicate a rupture or crack

Sign off on the filter element life maintenance

WARNING: Use only genuine Gardner Denver air filter elements on Gardner Denver compressor units. Genuine parts are available through your authorized Gardner Denver distributor.

CAUTION: Do not oil this element. Do not wash in inflammable cleaning fluids. Do not use solvents other than water. Improper cleaning may damage the element.

NOTICE: Never operate the unit without the element. Never use elements that are damaged, ruptured or wet. Never use gaskets that won't seal. Keep spare elements and gaskets on hand to reduce downtime. Store elements in a protected area free from damage, dirt and moisture. Handle all parts with care.

CAUTION: Improper oil filter maintenance will cause damage to equipment. Replace filter element every 2000 hours of operation. More frequent replacement could be required depending on operating conditions. A filter element left in service too long may damage equipment.

DANGER: Air/oil under pressure will cause severe personal injury or death. Shut down compressor, relieve system of all pressure, disconnect, lockout and tagout power supply to the starter before removing valves, caps, plugs, fittings, bolts and filters.

CAUTION: Compressor, air/oil reservoir, separation chamber and all piping and tubing may be at high temperature during and after operation.

Package enclosure filter pad replaced (if applicable)?
