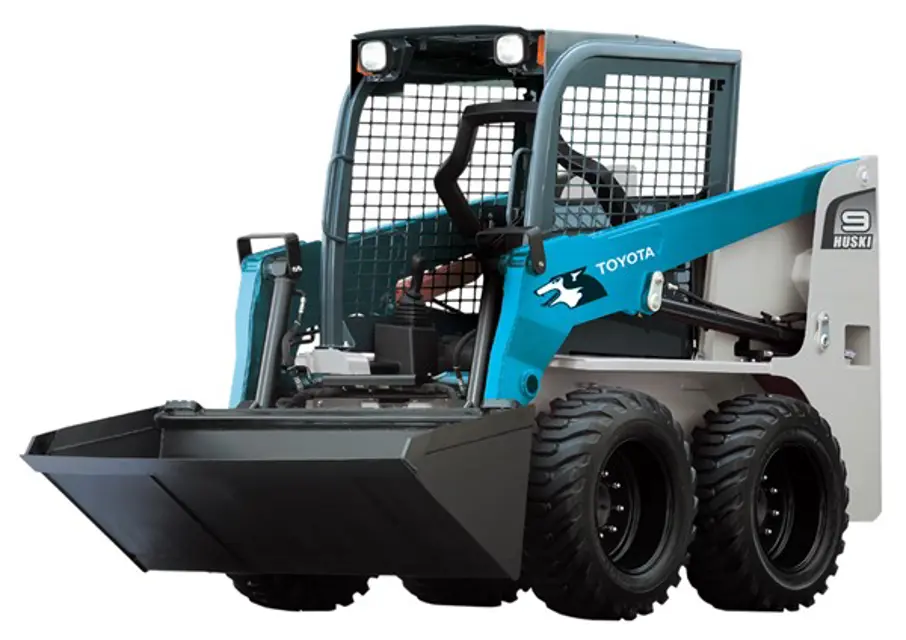

Toyota Skid-Steer Loader 30-5SDK9

1. Cylinder installed portion looseness - Tighten

2. Cylinder and piston rod damage - Inspect and correct and replace as required.

3. Rising speed, dumping speed - Inspect and correct and replace as required.

4. Cylinder operating condition, natural drop, natural forward tilt - Measure and correct and adjust as required.

5. Cylinder oil leak - Inspect and correct and replace as required.

6. Pin and cylinder hearing wear, damage - Inspect and correct and replace as required.

7. Oil leak, abnormal sound - Inspect and correct and replace as required.

Caution: Clean off the grease fitting nipples before lubricating.

Cleaned grease fitting nipples?

Lubricated the arm and cylinder portion joint pin?

Sign off on the arm system lubrication

Warning: When the engine is hot, it is very dangerous to remove the cap. Coolant level check must always be performed when the engine is cold.

Remove the cap and check the coolant level from the filler port.

Is the engine coolant visible through the filler port?

If the engine coolant is not visible through the filler port, fill appropriately diluted coolant (LLC) to the port.

Note: To close and tighten the radiator cap, match the pawl on the reverse side of the cap with the notch on the filler port and turn the cap fully clockwise while applying a downward force.

Sign off on the coolant level check

- Injection timing - Measure and correct and adjust as required.

- Glow plug heat coil breakage - Inspect and correct and replace as required.

- Intake heater - Inspect and correct and replace as required.

- Specific gravity - Measure and correct and adjust as required.;

1. Move the levers in the forward and backward directions, and inspect them for abnormality.

2. When you release the levers, inspect whether they automatically return to the neutral position.

Caution: If any abnormality is found, contact your Toyota dealer to request an inspection.

- While the vehicle is being driven slowly by operating the steering control lever in a safe place, inspect it for abnormality when the vehicle is spin to the left or right by operating the lever alternately. Also, inspect whether the lever automatically returns and the vehicle stops when the lever is released.

- Moreover, inspect speed change and switch over between forward and reverse by a degree of shifting the lever.

Caution: If any abnormality is found, have the vehicle repaired.;
