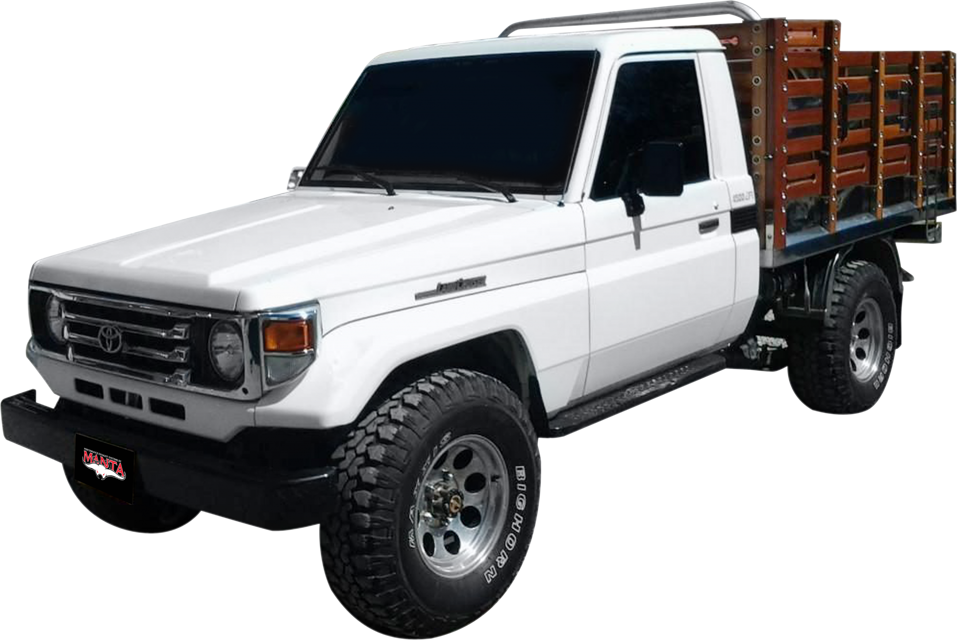

Toyota Vehicle FZJ78

Ensure the vehicle is on a level spot and the engine is turned off and at operating temperature.

Wait a few minutes for the oil to drain back into the bottom of the engine.

Pull out the dipstick and wipe it clean with a rag.

Check the oil level on the dipstick.

CAUTION: Be careful not to touch the hot exhaust manifold.

Is the oil level below or only slightly above the low level?

If yes, add engine oil of the same type as already in the engine.

Warning: Do not remove the radiator cap when the engine is hot to prevent burning yourself.

If the engine is not cold, wait until it cools down.

Is the coolant level between the 'FULL' and 'LOW' lines on the reservoir?

If the level is low, add ethylene-glycol type coolant.

Did the coolant level reach the 'FULL' line after adding coolant?

If the coolant level drops within a short time after replenishing, there may be a leak in the system.

Did you visually check the radiator, hoses, radiator cap, drain cock, and water pump for leaks?

If you can find no leak, have your Toyota dealer test the cap pressure and check for leaks in the cooling system.

Tire tread wear indicators visible

Number of grooves where indicators are visible

Tread depth less than 4 mm for snow tires

Any visible damage such as cuts, splits and cracks on tires

Warning: Perform this procedure immediately when the fuel filter warning light and buzzer come on.

Fuel filter warning light and buzzer on?

Upload a photo of the drain plug before the procedure

Small tray placed under the drain plug?

Turn the drain plug 2-2.5 turns

Water oozing from around the drain plug?

Operate the priming pump until fuel begins to run out

Upload a photo of the drain plug after the procedure

Sign off on the fuel filter water draining procedure

Warning: Battery produces hydrogen gas during recharging. Ensure sufficient ventilation.

Is the battery installed on the vehicle?

If battery is installed on the vehicle, disconnect the ground cable.

Power switch on the recharger is off when connecting/disconnecting charger cables

Battery is in an unconfined area

Never recharge the battery while the engine is running or accessories are turned on.

Sign off on the battery recharge procedure
