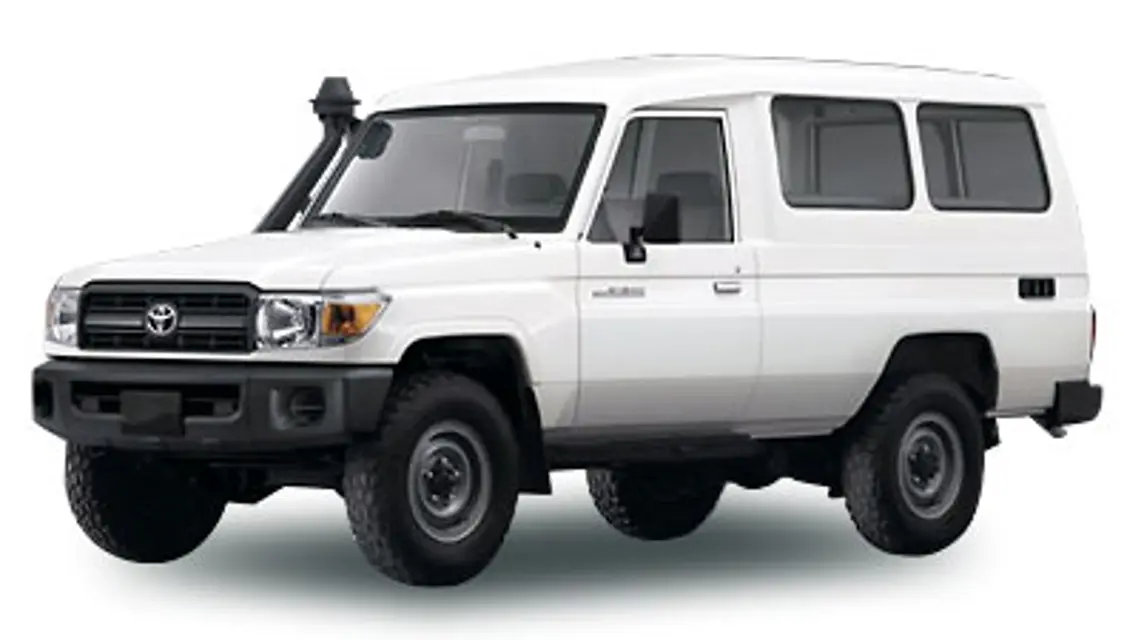

Toyota Vehicle HZJ78

CAUTION: To prevent yourself from burning, be careful not to touch the radiator or condenser when the engine is hot.

NOTICE: To prevent damage to the radiator and condenser, do not perform the work by yourself.

Describe the condition of the radiator and condenser

Sign off on the radiator and condenser check

Do not wash the vehicle floor with water, or allow water to get onto the floor when cleaning the vehicle interior or exterior. Water may get into audio components or other electrical components above or under the tloor carpet (or mat) and cause a malfunction; and it may cause body corrosion.

The vinyl upholstery may be easily cleaned with a mild soap or detergent and water.

First vacuum over the upholstery to remove loose dirt. Then, using a sponge or soft cloth, apply the soap solution to the vinyl. After allowing it to soak in for a few minutes to loosen the dirt, remove the dirt and wipe off the soap with a clean damp cloth. If all the dirt do not come off repeat the procedure.

Commercial foaming-type vinyl cleaners are also available which work well. Follow the manufacturer's instructions.

Do not use solvent, thinner, gasoline or window cleaner on the interior.

Warning: Perform this procedure immediately when the fuel filter warning light and buzzer come on.

Fuel filter warning light and buzzer on?

Place a small tray under the drain plug to catch the water.

Drain plug turned about 2-2-1/2 turns?

Warning: Loosening more than this will cause water oozing from around the drain plug.

Operated the priming pump until fuel begins to run out?

Drain plug retightened without using a tool?

Sign off on the fuel filter water draining

The fluid (electrolyte) level must be between the upper and lower lines.

When checking the fluid level, look at all six cells, not just one or two.

If the level is lower than the lower line, add distilled water. (See "ADDING DISTILLED WATER".)

2. Add distilled water to cells needing fluid.

If the side of your battery is covered, check the water level by looking down directly above the cell as illustrated above.

CAUTION: To prevent burning yourself, do not remove the radiator cap when the engine is hot.

Coolant level is between the 'FULL' and 'LOW' lines on the reservoir when the engine is cold.

Coolant level is not on or below the 'LOW' line.

No visible leak in the radiator, hoses, radiator cap, drain cock, and water pump.

Sign off on the coolant level check.
