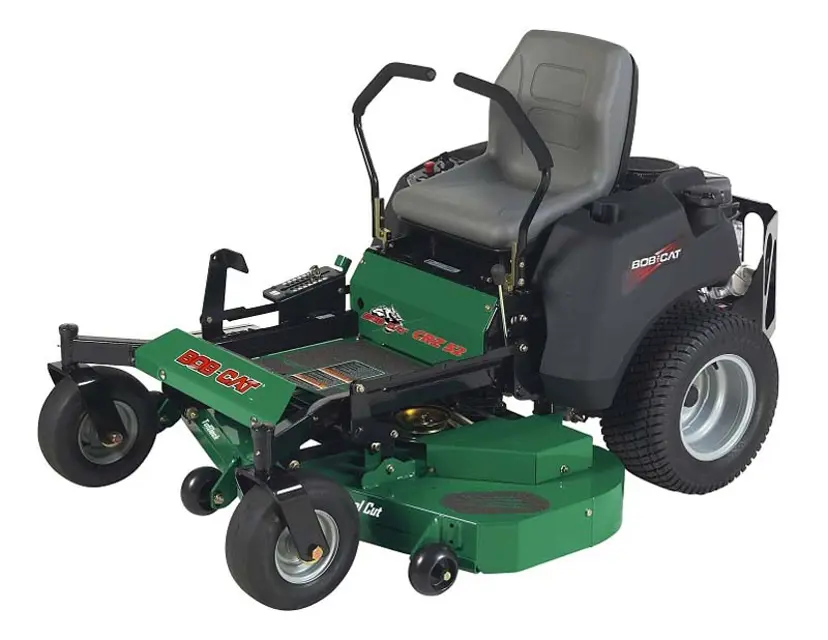

Bobcat Side Discharge Mower 942632

Warning: Ensure the engine is off and cool before starting the procedure

Spark plug removed successfully

If the spark plug is white blistered or black coated, it indicates a problem. Do not attempt to repair, replace it.

New spark plug installed successfully

Set plug gap as specified in engine manual

Sign off on the spark plugs maintenance

Clean and replace the air cleaner element as specified in the service chart. Uneven running, lack of power or black exhaust may indicate a dirty air cleaner.

Unclamp end cover C and remove existing cleaner element A.

Insert new element A and replace cover C.

Ensure breathing port B is pointing down and towards the front of the tractor.

Sign off on the air cleaner element maintenance

Warning: Blade balance must be maintained at 5/8 oz-in (19.4 g-cm) or less. Failure to keep blades balanced causes excess vibration, wear, and shortened life of most components of the machine.

Balance the blade at the center

Attach a 1/8 oz (3.9 g) weight at a distance 5\ (127 mm) from center on the light end"

Does the addition of the weight make the light end the heavy end?

If the addition of the weight does not make the light end the heavy end, file or grind the heavy end until it does.

Sign off on the blade adjustment

Warning: Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged.

Check oil level with the dipstick.

If oil is needed, add fresh oil of proper viscosity and grade. See engine manual for oil specifications. Do not overfill.

Replace dipstick before starting engine.

Warning: Use jackstands or equivalent support. Do not rely only on mechanical or hydraulic jacks.

Machine supported with rear wheels off the ground

Traction levers moved to neutral lock position and seat raised

Upload a photo of the disconnected seat switch wire with jumper wire connected

Engine started and running at low speed

Parking brake moved to OFF position

Jam nuts K at both ends of the control rod L loosened

Control rod rotated until corresponding wheel stops turning

Control rod jam nuts locked and adjustment checked
