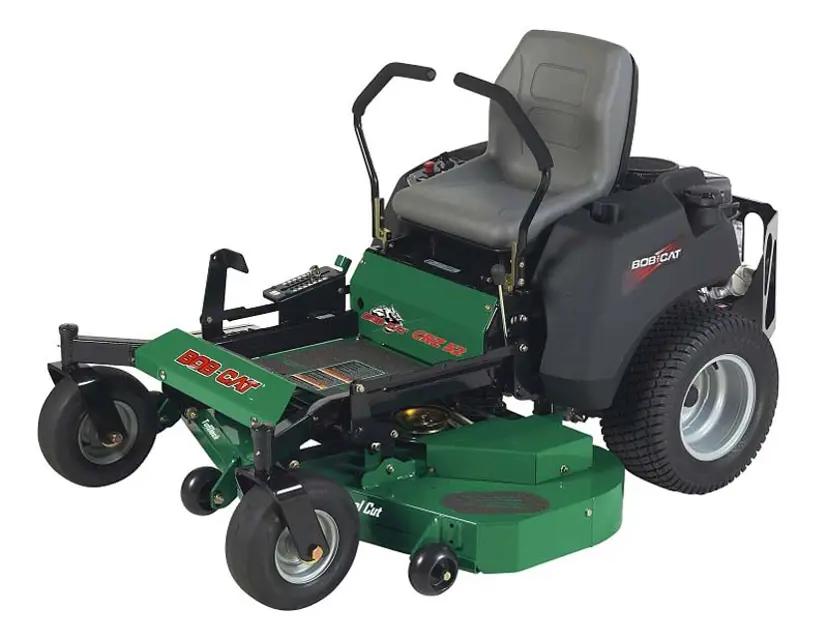

Bobcat Side Discharge Mower 942630

Warning: Blade balance must be maintained at 5/8 oz-in (19.4 g-cm) or less. Failure to keep blades balanced causes excess vibration, wear, and shortened life of most components of the machine.

Balance the blade at the center

Attach a 1/8 oz (3.9 g) weight at a distance 5\ (127 mm) from center on the light end"

Does the addition of the weight make the light end the heavy end?

If the addition of the weight does not make the light end the heavy end, file or grind the heavy end until it does.

Sign off on the blade adjustment

Warning: Ensure the engine is off and cool before starting the procedure

Spark plug removed successfully

If the spark plug is white blistered or black coated, it indicates a problem. Do not attempt to repair, replace it.

New spark plug installed successfully

Enter the spark plug gap as specified in the engine manual

Sign off on the spark plug maintenance

Clean and replace the air cleaner element as specified in the service chart. Uneven running, lack of power or black exhaust may indicate a dirty air cleaner.

Unclamp end cover C and remove existing cleaner element A.

Insert new element A and replace cover C. Ensure breathing port B is pointing down and towards the front of the tractor.

Sign off on the air cleaner element maintenance

Warning: For trained personnel only

Wire I at clutch M disconnected

Bolts J removed and torque restraint removed

Transaxle drive belt removed using a ratchet with a 9/16\ socket"

New transaxle drive belt installed

Fans inspected and replaced if worn or damaged

Enter the torque transaxle pulley nut to 28.3-41.6 ft-lbs (38-56 Nm)

Warning: Battery acid is caustic and fumes are explosive and can cause serious injury or death. Use insulated tools, wear protective glasses or goggles and protective clothing when working with batteries. Read and obey the battery manufacturer’s instructions.

NOTE: If your unit has a AGM type battery an AGM type battery charger should be used when charging.

Be certain the ignition switch is OFF and the key has been removed before servicing the battery.

Verify battery polarity before connecting or disconnecting the battery cables.

When installing the battery, always assemble the RED, positive ( + ) battery cable first and the BLACK ground, negative ( - ) cable last.

When removing the battery, always remove the BLACK ground, negative ( - ) cable first and the red, positive ( + ) cable last.

Clean the cable ends and battery posts with steel wool.

Use a solution of baking soda and water to clean the battery. Do not allow the solution to enter into the battery cells.

Tighten cables securely to battery terminals and apply a light coat of silicone dielectric grease to terminals and cable ends to prevent corrosion.
