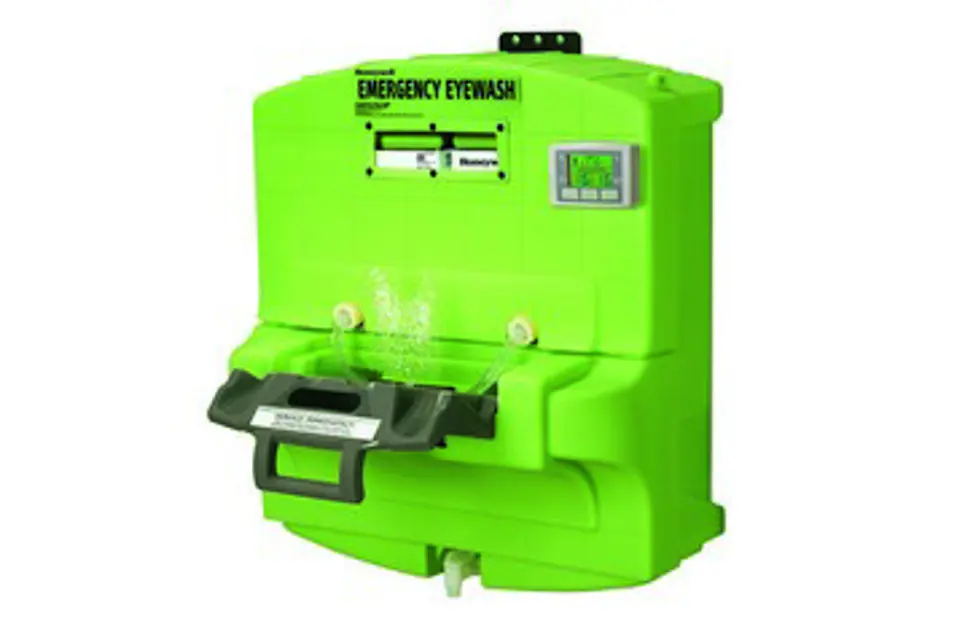

Honeywell Eyewash Station Fendall Pure Flow 1000

Replacing Cartridges with Black Nozzles after Use

1. Place suitable container under the drain.

2. Open drain spigot by turning handle forward.

3. When empty, close drain spigot by turning handle back.

4. Dispose of fluid down a regular waste drain.

6. Raise reservoir by lifting from below until it locks in position with two latching tabs.

7. Remove metal retaining clip. (if equipped)

8a. (for nozzles without release tab) Slide nozzles out of the slots in the nozzle plate by gently lifting tubing up at nozzle connection and pulling straight out of nozzle plate.

Warning: Do not lift activating door during inspection, as it will start fluid flow. Once fluid flow has started, it cannot be stopped.

Inspection records must be kept with the unit.

Cartridge fluid expiration date

Cartridges must be replaced on or before expiration date.

Install new cartridges as described in 'Cartridge Installation.'

'Warning Service Immediately' notice visible?

If 'Warning Service Immediately' notice is visible or if the activating door is open, replace cartridges immediately.

Platens unlatched and down on the bags?
