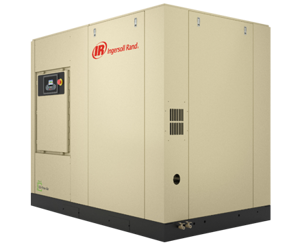

Ingersoll Rand Compressor R45

Ensure the compressor is electrically isolated for at least 15 minutes before commencing any maintenance work.

Remove the panels from the compressor.

Using a clean dry cloth, remove dust from the surface of the motor cowl and ensure all ventilation slots are free of obstructions.

Sign off on the motor cowl cleaning

Replace No-loss condensate drain service module

Service Minimum pressure check valve (MPCV) service kit

The minimum pressure check valve (MPCV) shall be frequently tested and regularly maintained. Remove it from the compressor for testing. If operating conditions are particularly severe, the frequency of testing and maintenance shall be increased accordingly.

The user shall establish the frequency of such tests as it is influenced by such factors as the severity of the operating environment. For R30-37, the MPCV is installed as part of combination block.

The minimum pressure check valve (MPCV) should be tested and recalibrated in accordance with any national or local codes that may exist. If no code exists, Ingersoll Rand recommends that the valve is recalibrated at intervals of one year by a licensed contractor or qualified service personnel.

Clean Drains with all their components (TIMED DRAINS ONLY)

Service Inlet valve service kit

Sign off on the compressor maintenance

Warning: Ensure the compressor is electrically isolated for at least 15 minutes, before commencing any maintenance work.

Is the compressor isolated from the system and fully discharged the compressed air within the compressor?

Upload a photo of the tube removed from the fitting located on the bottom of the moisture separator.

Is the bowl of the moisture trap removed?

Upload a photo of the cleaned bowl of the moisture trap.

Is the bowl of the moisture trap replaced?

Sign off on the condensate drain maintenance

Check - Connections and hoses for leaks

A coolant level sight glass is located on the side of the separator tank. While the compressor is running under load, coolant should always be visible in the sight glass. The normal position is half way. The compressor should be running for at least 40 seconds for this check.

Stop the compressor, ensure the sump pressure is 0 psig and ensure the coolant is still visible in the sight glass.

Run the compressor for a minimum of 40 seconds. The coolant level should be visible in the sight glass.

Isolate the compressor from the external air system.

Press the emergency stop to vent the separator tank and airend. Fixed speed compressors can take more than two minutes to fully de-pressurize once stopped.

1. Check the retaining cap for dirt and debris and wipe clean.

2. Unclip the retaining cap and withdraw the old element.

3. Fit the new element and refit the retaining cap.

Replace - Coolant filter element

1. Remove drain plug from bottom of filter housing and drain coolant.

3. Remove the element from the housing.

4. Place the old element in a sealed bag and dispose of in a safe way.
