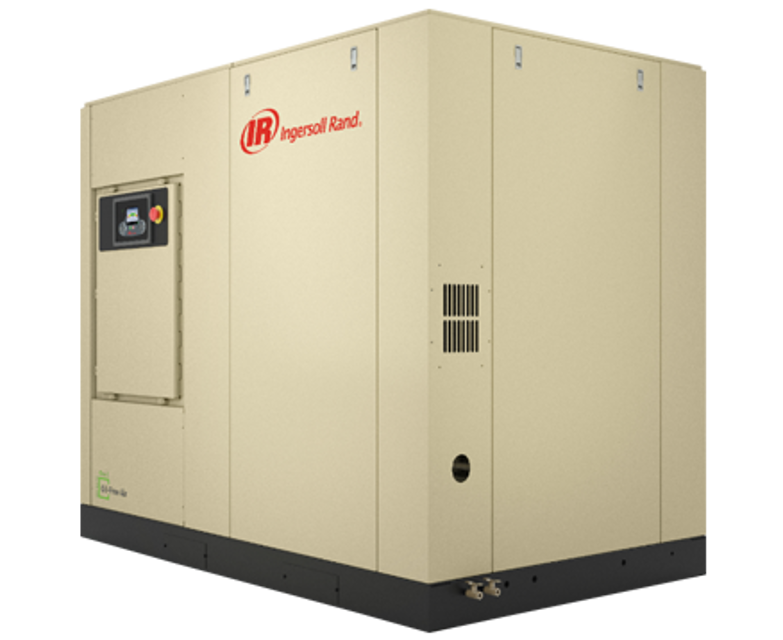

Ingersoll Rand Air Compressor XF250

Have recommended spares on hand

The flexible hoses that carry coolant to and from the oil cooler may become brittle with age and will require replacement.

Have your local Ingersoll Rand distributor check them every 2 years.

Ensure the compressor is isolated from the compressed air system by closing the isolation valve and venting pressure from the drip leg.

Ensure the main power disconnect switch is locked open and tagged.

Have recommended spares on hand

Loosen the old element using a suitable device

Use drain pan to catch any leakage during removal

Wipe the sealing surface of the filter with a clean, lint-free rag

Remove the replacement element from its protective package

Apply a small amount of clean lubricant on the rubber seal

Before starting any maintenance, be certain the following is heeded.

Have recommended spares on hand

Replace Premium Coolant* (ULTRA)

In very clean operating environments and where inlet filter is changed at the above prescribed intervals.

In extremely dirty environments change coolant, filters, and separator elements more frequently.

Sign off on the coolant replacement

Have recommended spares on hand

Relubrication Interval - 60 Hz (or 9 months, whichever comes first)

1000 hours all TEFC drive motors

2000 hours all ODP drive motors and all fan motors

Before starting any maintenance, be certain the following is heeded.

Have recommended spares on hand

Replace Food grade lubricant (ULTRA FG)

In very clean operating environments and where inlet filter is changed at the above prescribed intervals.

In extremely dirty environments change coolant, filters, and separator elements more frequently.

Sign off on the lubricant replacement
