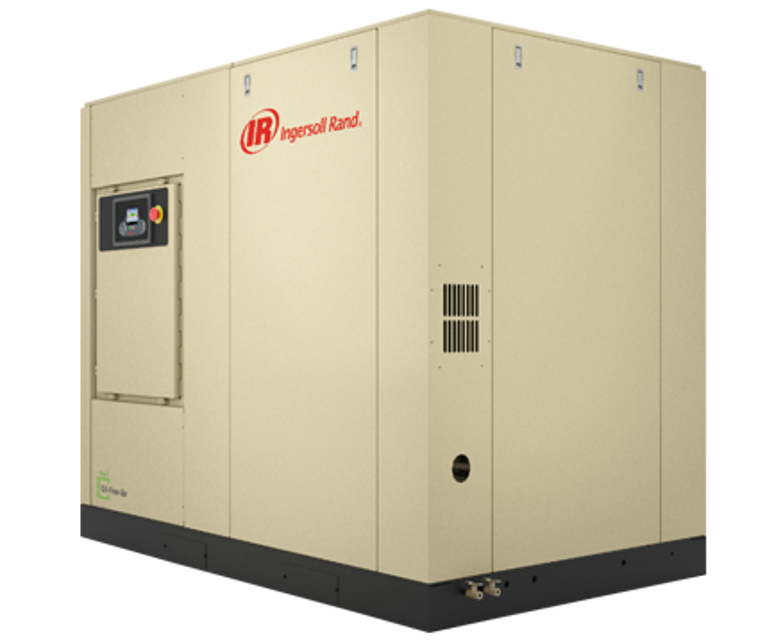

Ingersoll Rand Air Compressor EP350

Have recommended spares on hand

Relubrication Interval - 60 Hz (or 9 months, whichever comes first)

1000 hours all TEFC drive motors

2000 hours all ODP drive motors and all fan motors

Safety Instructions: Read before starting any maintenance

Use correct tools and have recommended spares on hand

Loosen the old element using a suitable device

Use drain pan to catch any leakage during removal

Wipe the sealing surface of the filter with a clean, lint-free rag

Remove the replacement element from its protective package

Apply a small amount of clean lubricant on the rubber seal and install the element

Screw element/s on until the seal makes contact with the head of the filter assembly

Before starting any maintenance, be certain the following is heeded.

Have recommended spares on hand

Ingersoll Rand recommends incorporating predictive maintenance, specifically the use of coolant and vibration analysis, into all Preventative Maintenance programs.

Predictive Maintenance is designed to increase system reliability and prevent costly downtime.

Through the use of sophisticated diagnostic tools, including fluid, vibration, and optional air analysis, IRA Certified Service Technicians can identify and correct potential problems BEFORE they can cause expensive unscheduled downtime.

How does predictive analysis work? By establishing an initial baseline for normal operation, and then regularly monitoring fluid and vibration conditions, any sudden deviation or significant increase from this baseline can be identified and investigated to pinpoint the cause.

Have recommended spares on hand

The flexible hoses that carry coolant to and from the oil cooler may become brittle with age and will require replacement.

Have your local Ingersoll Rand distributor check them every 2 years.

Ensure the compressor is isolated from the compressed air system by closing the isolation valve and venting pressure from the drip leg.

Ensure the main power disconnect switch is locked open and tagged.

Have recommended spares on hand

Ensure the compressor is isolated from the compressed air system by closing the isolation valve and venting pressure from the drip leg.

Ensure the main power disconnect switch is locked open and tagged

Follow these precautions to minimize damage from static electricity.

Make the least possible movement to avoid building up static electricity from your clothing or tools.

Discharge potential static electricity by touching (grounding) yourself to the starter box.

Handle circuit boards only by their edges.
