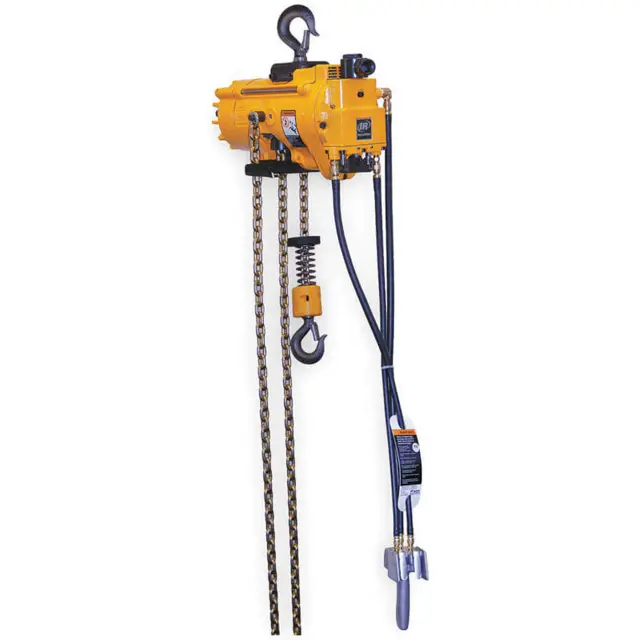

Ingersoll Rand Air Chain Hoist ML250KS

Warning: This inspection should be conducted by trained personnel only.

Operation: Check for visual signs or abnormal noises

Operation: All controls function properly and return to neutral when released

Operation: Check chain feed through the hoist and bottom block

Hooks: Check for wear or damage, increased throat width, bent shank or twisting of the hook

Hooks: Check hooks swivel freely

Hook Latch: Check if the hook latch is present and operating

Upper and Lower Limit Device: Test operation with no load slowly to both extremes of travel

Limit Assembly: Check limit arm moves freely

Warning: Always ensure the hoist is disassembled and powered off before starting the lubrication process.

CAUTION! Do not use automotive type detergent oil. Detergents will delaminate the motor vanes and cause premature failure.

All motor parts coated with a light film of Ingersoll Rand Pneu-Lube ® Medium Oil No. 50 or a good quality hydraulic oil?

Ingersoll Rand No. 11 Grease applied to the Planet Gear Bearings (83), the Brake Driver Bearing (87), and gearing?

Top and bottom hooks' thrust bearings packed with Ingersoll Rand No. 68 grease or a standard No. 2 multipurpose grease?

Sign off on the lubrication process

WARNING! Failure to maintain clean and well lubricated load chain will result in rapid load chain wear that can lead to chain failure which can cause severe injury, death or substantial property damage.

1. Lubricate load chain weekly, or more frequently, depending on severity of service.

2. In a corrosive environment, lubricate more frequently than normal.

3. Lubricate each link of the load chain and apply new lubricant over existing layer.

4. If required, clean chain with acid free solvent to remove rust or abrasive dust buildup and lubricate the chain.

5. Use Ingersoll Rand LUBRI-LINK ® or a SAE 50 to 90 EP oil.

1. Lubricate the hook and hook latch pivot points. Hook and latch should swivel / pivot freely.

2. Use Ingersoll Rand LUBRI-LINK® or a SAE 50 to 90 EP oil.
