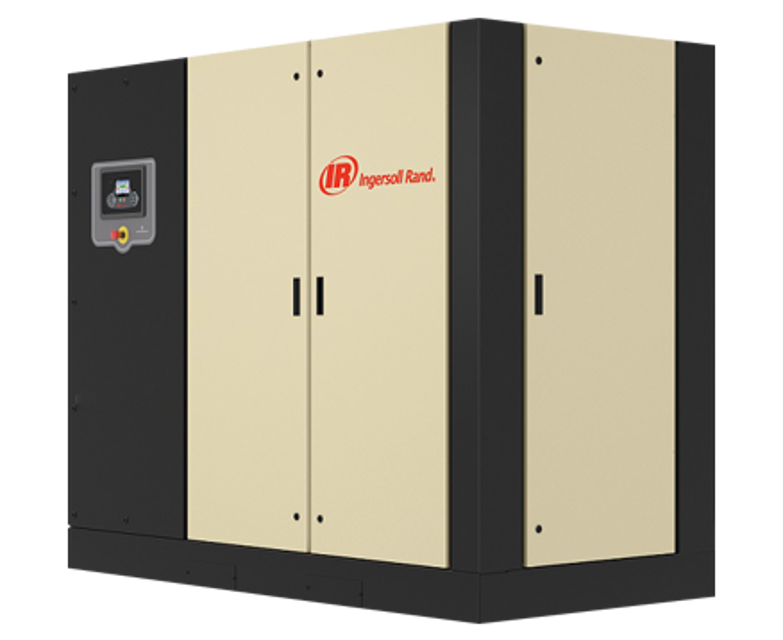

Ingersoll Rand Air Compressor R110IU-10

Take coolant sample for fluid analysis

Check scavenge screen for blockage, clean if required

Check the calibration of the pressure transducer

Warning: Only trained personnel should perform this procedure.

Position a suitable container under the drain plug.

Drain plug removed and coolant completely drained?

Additional coolant removed from the airend discharge tube and oil coolers from their respective plugs?

Plug replaced and compressor refilled?

CAUTION - DO NOT MIX OILS WITH ULTRA COOLANT.

Compressor started and checked for leaks?

Loosen filter element with the correct tool

Remove the element from the housing

Place the old element in a sealed bag and dispose of in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement element from its protective package

Apply a small amount of lubricant to the element seal

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn

Start the compressor and check for leaks

Sign off on the coolant filter replacement

• Unscrew the retaining nut and withdraw the old elements

• Fit the new element ensuring that the retaining nut is secured

• Unclip the retaining cap and withdraw the old elements)

. Fit new elements) and refit the retaining cap.

Unscrew the retaining nut and remove the cannister lid

Warning: Do not operate unit past this 1000 hour change interval, as coolant degradation will occur.

Enter the current hours of operation

Enter the date of the last coolant change

Sign off on the coolant replacement
