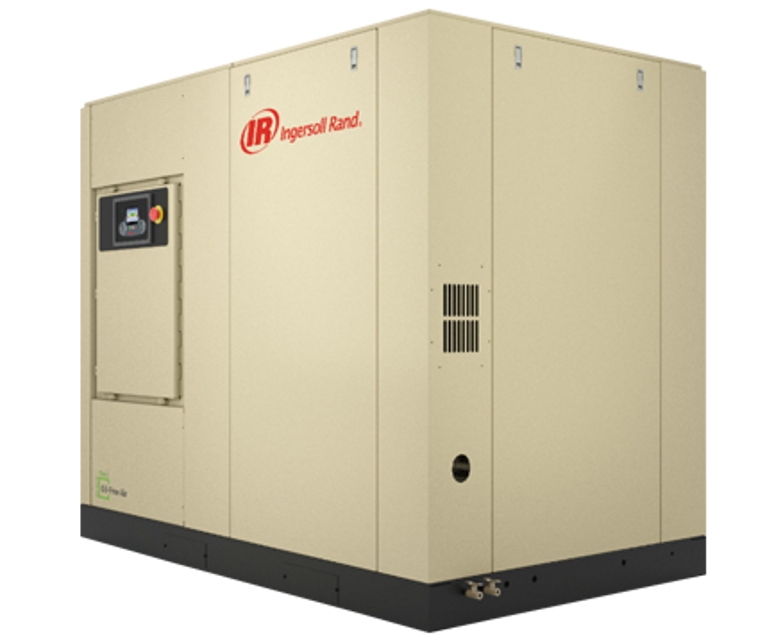

Ingersoll Rand Air Compressor EPE250-2S

Before starting any maintenance, be certain the following is heeded.

Have recommended spares on hand

Replace Food grade lubricant (ULTRA FG)

In very clean operating environments and where inlet filter is changed at the above prescribed intervals.

In extremely dirty environments change coolant, filters, and separator elements more frequently.

Sign off on the lubricant replacement

Have recommended spares on hand

Relubrication Interval - 60 Hz (or 9 months, whichever comes first)

1000 hours all TEFC drive motors

2000 hours all ODP drive motors and all fan motors

Grease should be added when the motor is stopped and power disconnected

Before starting any maintenance, be certain the following is heeded.

Have recommended spares on hand

Sign off on the hoses inspection

Before starting any maintenance, be certain the following is heeded.

Have recommended spares on hand

Extended life Premium coolant* (ULTRA EL)

In very clean operating environments and where inlet filter is changed at the above prescribed intervals.

In extremely dirty environments change coolant, filters, and separator elements more frequently.

Enter the current operating hours of the machine

Enter the date of the last coolant change

Have recommended spares on hand

The flexible hoses that carry coolant to and from the oil cooler may become brittle with age and will require replacement.

Have your local Ingersoll Rand distributor check them every 2 years.

Ensure the compressor is isolated from the compressed air system by closing the isolation valve and venting pressure from the drip leg.

Ensure the main power disconnect switch is locked open and tagged.
