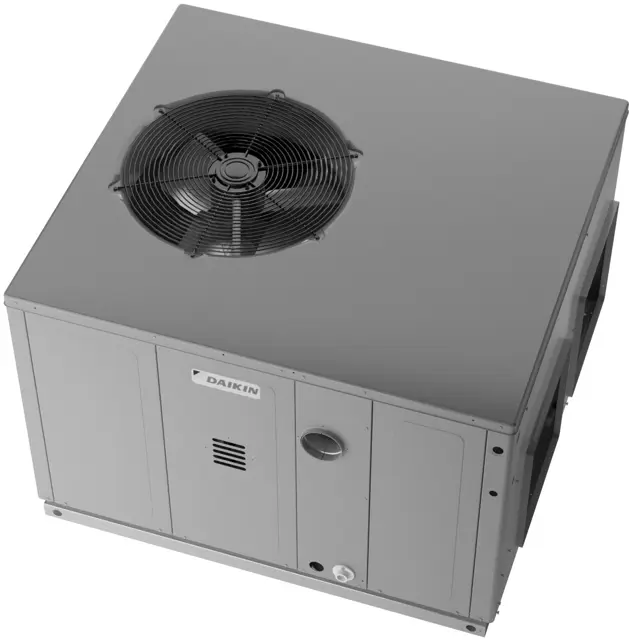

Daikin Package Gas Unit DP13GM3007041A

Create an account to install this asset package.

Maintenance Plans for Daikin Package Gas Unit Model DP13GM3007041A

Integrate maintenance plans directly into your work orders in MaintainX.

Aluminum Indoor Coil Cleaning

WARNING! HIGH VOLTAGE! Disconnect all power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death.

IMPORTANT NOTE: Never operate unit without a filter installed as dust and lint will build up on internal parts resulting in loss of efficiency, equipment damage and possible fire.

Power disconnected?

Filter installed?

This unit is equipped with an aluminum tube evaporator coil. The safest way to clean the evaporator coil is to simply flush the coil with water.

Flushed the coil with water?

Sign off on the coil cleaning

Run this procedure

6 Monthly Package Inspection

WARNING!

HIGH VOLTAGE!

Disconnect all power before servicing or installing this unit. Multiple power sources may be present.

Failure to do so may cause property damage, personal injury or death.

IMPORTANT NOTE: Never operate unit without a filter installed as dust and lint will build up on internal parts resulting in loss of efficiency, equipment damage and possible fire.

The coils should be free of debris so adequate airflow is achieved.

The return and supply registers should be free of any obstructions.

The filters should be cleaned or replaced.

Your package unit should be inspected by a qualified installer, or service agency at least twice every year.

Run this procedure

2 Monthly Filters Replacement

WARNING! HIGH VOLTAGE! Disconnect all power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death.

IMPORTANT NOTE: Never operate unit without a filter installed as dust and lint will build up on internal parts resulting in loss of efficiency, equipment damage and possible fire.

An indoor air filter must be used with your comfort system. A properly maintained filter will keep the indoor coil of your comfort system clean. A dirty coil could cause poor operation and/or severe equipment damage.

Check your return filter(s) at least once every two months. When they are dirty, replace or clean as required.

Type of filter

NOTE: Reusable type filters should be washed with warm water, dried completely and sprayed with an adhesive according to the manufacturers recommendations.

Filters should be cleaned (permanent) or replaced (disposable) every two months or as required.

When replacing a filter, it must be replaced with a filter of the same type and size and always make certain the air flow arrows on the filter point in the proper direction.

Sign off on the filter replacement

Run this procedure
