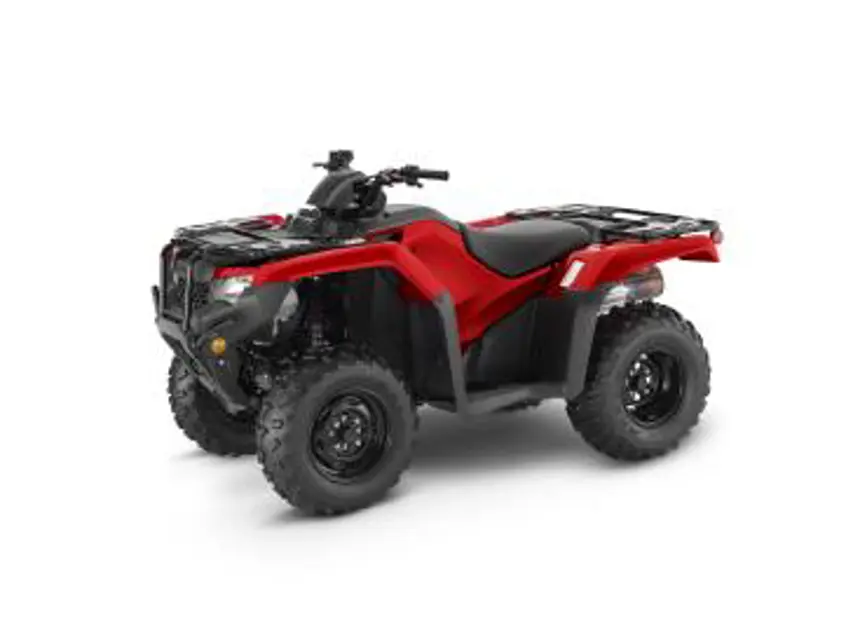

Honda Utility ATV TRX420TM1

Cargo placed only on the front and rear racks

No passenger on the front or rear cargo racks

Cargo on the rear rack is as far forward as possible

Cargo on the front rack does not interfere with handlebar movement

Cargo does not extend beyond the edges of the racks

All cargo is secured before riding

Cargo weight is balanced evenly on both sides

Safety Precautions: Only trained personnel should perform this inspection.

Bumps or bulges in the side of the tire or the tread

Cuts, slits, or cracks in the tires

Nails or other foreign objects embedded in the side of the tire or tread

Damage after hitting a pothole or other hard object

Measure the groove depth in the center of the tire

Tire tread depth at the center below 3/16 in (4 mm)

Upload a photo of the inspected tire

Park your ATV on a firm, level surface.

Place an oil drain pan under the oil drain bolt.

Remove the oil fill cap, O-ring, drain bolt and sealing washer.

After the oil has completely drained, reinstall the drain bolt with a new sealing washer and tighten it to the specified torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)

Remove the oil level check bolt and sealing washer.

Slowly fill the rear final gear with the recommended oil until oil start to flow out of the oil level check hole. Allow oil to settle for 2 – 3 minutes before moving to next step to prevent overfilling.

Coat a new O-ring with grease and install it into the fill cap groove and tighten it to the specified torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)

Install the oil level check bolt with a new sealing washer and tighten it to the specified torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)

Pour the drained oil into a suitable container and dispose of it in an approved manner.

Warning: For trained personnel only

Are the tires matching the performance capabilities of the ATV?

Choose the type of tire replacement

Warning: Installing improper tires can affect handling and stability.

Enter the size and type of tires recommended in the owner's manual

Choose the location of tire replacement

Was the work checked by the dealer?

Sign off on the tire replacement

Refer to Safety Precautions on page 121.

Your ATV’s oil filter has very specific performance requirements. Use a new Honda Genuine oil filter specified for your model or a filter of equal quality.

NOTICE Using the wrong oil filter may result in leaks or engine damage.

This procedure requires mechanical skill and professional tools such as a torque wrench as well as a means for disposing of the drained fluid (page 226). If you do not have the skills or the tools, see your dealer.

Change the oil with the engine warm to assure complete and rapid draining.

1.With the ATV on level ground, remove the oil check lid (page 144) and the oil fill cap/dipstick from the front crankcase.

2.Place an oil drain pan under the crankcase and remove the engine oil drain bolt (1) and sealing washer (2).
