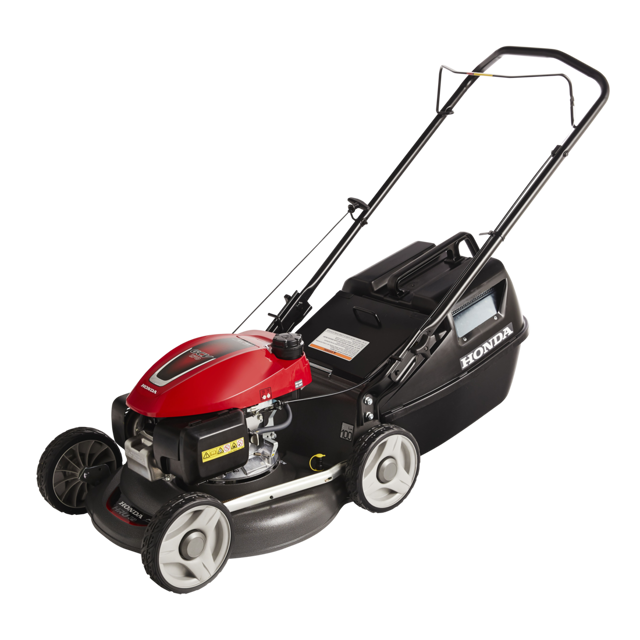

Honda Lawn Mower HRU216K2

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

Is the hose properly attached and in good condition?

Are there any holes or tears in the filter elements?

Is there any dirt in the air cleaner housing and cover?

Is the spark plug properly gapped and free of deposits?

Is the electrode worn, or is the insulator cracked or chipped?

Air Cleaner Service - 1) Service more frequently when used in dusty areas.

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

Warning: This maintenance check requires trained personnel with PPE!

Is the engine off before beginning any maintenance or repairs?

If engine is not off, stop the procedure and turn off the engine

Is the oil level within the recommended range?

If oil level is low, add the recommended oil to reach the upper limit mark on the dipstick. Do not overfill.

Air filters clean and in good condition?

Fuel tank filter in good condition?

Blade bolt tightness checked and within safe limits?

Is the fuel valve in the OFF position?

Upload a photo of the oil filler area after cleaning

Is the mower tilted on its right side?

Dispose of used motor oil and containers in a manner that is compatible with the environment.

Enter the amount of oil added (in Litres)

Is the oil level at the upper limit mark on the dipstick?

Warning: Ensure the engine is warm before starting the procedure.

Fuel valve turned to the OFF position

Upload a photo of the oil filler cap/dipstick removed

Amount of new oil added (in Litres)

Warning: Using non-detergent oil can shorten the engine’s service life and using 2-stroke engine oil will damage the engine.

Oil level checked with the mower on a level surface
