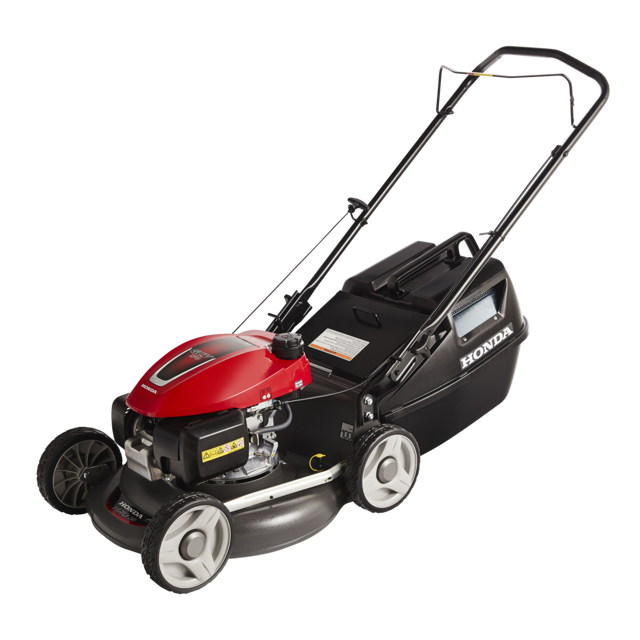

Honda Lawn Mower HRU197M1

Warning: This maintenance check requires trained personnel with PPE!

Is the engine off before beginning any maintenance or repairs?

Is there adequate ventilation whenever you operate the engine?

Is the engine and exhaust system cool before touching?

Are you not running the engine unless instructed to do so?

Have you read and understood the instructions before you begin?

Do you have the tools and skills required?

Are you careful when working around petrol?

Are you not using petrol to clean parts, using only a non-flammable solvent?

Turn the fuel valve to the OFF position to reduce the possibility of fuel leakage.

Is the fuel valve in the OFF position?

Wipe the oil filler area clean, and then remove the oil filler cap/dipstick.

Is the oil filler area clean and oil filler cap/dipstick removed?

Place a suitable container next to the mower to catch the used oil, and then tilt the mower on its right side. The used oil will drain through the filler neck. Allow the oil to drain completely.

Has the oil drained completely?

Dispose of used motor oil and containers in a manner that is compatible with the environment.

Warning: Ensure the engine is warm before starting the procedure

Fuel valve turned to the OFF position

Oil filler cap/dipstick removed

Upload a photo of the mower tilted on its right side

Dispose of used motor oil and containers responsibly

Amount of recommended oil added (in Litres)

Oil level checked with the mower on a level surface

Air Cleaner Service - 1) Service more frequently when used in dusty areas.

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

4. Wipe dirt from the inside of the air cleaner housing and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburettor.
