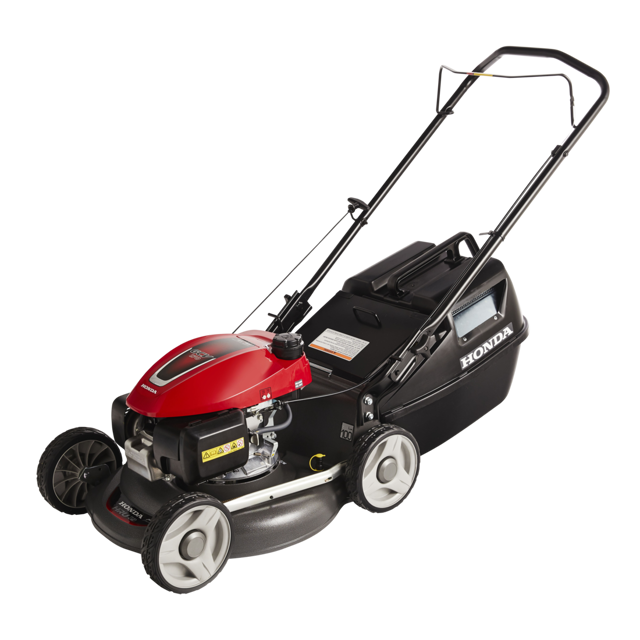

Honda Lawn Mower HRU197K1

Warning: Ensure the engine is warm before starting the procedure.

Fuel valve turned to the OFF position

Upload a photo of the clean oil filler area

Dispose of used motor oil and containers responsibly.

Enter the amount of new oil added (in Litres)

Warning: Using non-detergent oil or 2-stroke engine oil will damage the engine.

Oil level checked with the mower on a level surface

Oil level is at the upper limit mark on the dipstick

Warning: This maintenance check requires trained personnel with PPE!

Is the engine off before beginning any maintenance or repairs?

If engine is not off, stop the procedure and turn off the engine.

Is the oil level within the recommended range?

If oil level is low, add the recommended oil to reach the upper limit mark on the dipstick.

Is the air filter clean and in good condition?

If air filter is dirty, clean or replace it.

Is the fuel tank filter in good condition?

Air Cleaner Service - 1) Service more frequently when used in dusty areas.

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

Turn the fuel valve to the OFF position

Wipe the oil filler area clean, and then remove the oil filler cap/dipstick

Place a suitable container next to the mower to catch the used oil, and then tilt the mower on its right side

Allow the oil to drain completely

Dispose of used motor oil and containers in a manner that is compatible with the environment

Fill with the recommended oil. Do not overfill; measure the oil level

Check the oil level with the mower on a level surface

Screw the oil filler cap/dipstick securely

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

4. Wipe dirt from the inside of the air cleaner housing and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburettor.
