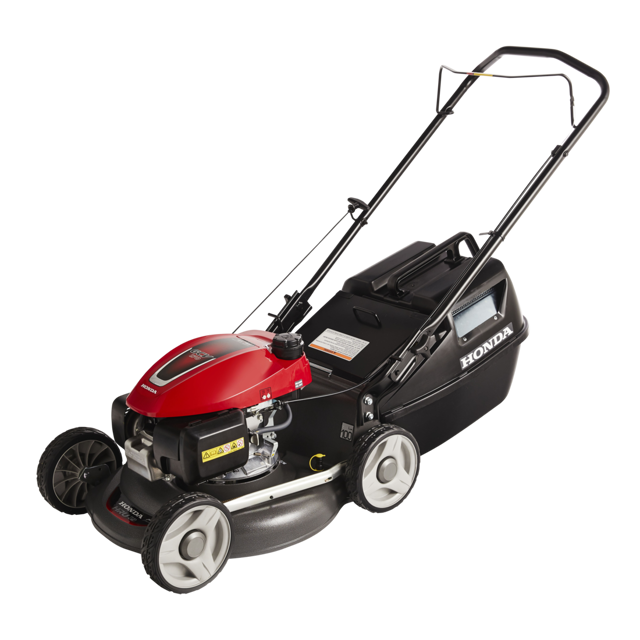

Honda Lawn Mower HRU216M2

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

4. Wipe dirt from the inside of the air cleaner housing and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburettor.

Air Cleaner Service - 1) Service more frequently when used in dusty areas.

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the mower in very dusty areas, clean the air cleaner more often than specified in the MAINTENANCE SCHEDULE.

Operating the engine without an air filter or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by Warranty.

HRU196K1, HRU196M1, HRU216K2 & HRU216M2 are equipped with a Snorkel to help prevent dust entry. Ensure the hose is properly attached and is in good condition at all times.

1. Unscrew and remove the two air cleaner nuts, then remove the air cleaner cover.

2. Remove the filter elements from the air cleaner housing and remove the foam filter element from the paper filter element.

3. Inspect the filter elements for holes or tears; and replace them if damaged.

Change engine oil every 25 hours when used under heavy load or in high ambient temperatures.

Drain the used oil while the engine is warm. Warm oil drains quickly and completely.

1. Turn the fuel valve to the OFF position to reduce the possibility of fuel leakage.

2. Wipe the oil filler area clean, and then remove the oil filler cap/dipstick.

3. Place a suitable container next to the mower to catch the used oil, and then tilt the mower on its right side. The used oil will drain through the filler neck. Allow the oil to drain completely.

Please dispose of used motor oil and containers in a manner that is compatible with the environment.

NOTE: Do not throw waste oil or containers in the trash or pour oil on the ground or down a drain. We suggest you take it in a sealed container to your local recycling centre or service station for reclamation.;4. Fill with the recommended oil. Do not overfill; measure the oil level

Engine oil capacity: GXV160 = 0.65 Litre

Warning: Ensure the engine is warm before starting the procedure.

Fuel valve turned to the OFF position

Upload a photo of the clean oil filler area

Dispose of used motor oil and containers responsibly

Enter the amount of new oil added (in Litres)

Warning: Using non-detergent oil or 2-stroke engine oil will damage the engine.

Oil level checked with the mower on a level surface

Oil level is not low and not overfilled

Warning: This maintenance check requires trained personnel with PPE!

Is the engine off before beginning any maintenance or repairs?

Is the air filter clean and in good condition?

Is the fuel tank filter in good condition?

Is the grass bag in good condition?

Is the carburettor modified for high altitude operation if necessary?

Is the fuel recommended for use?
