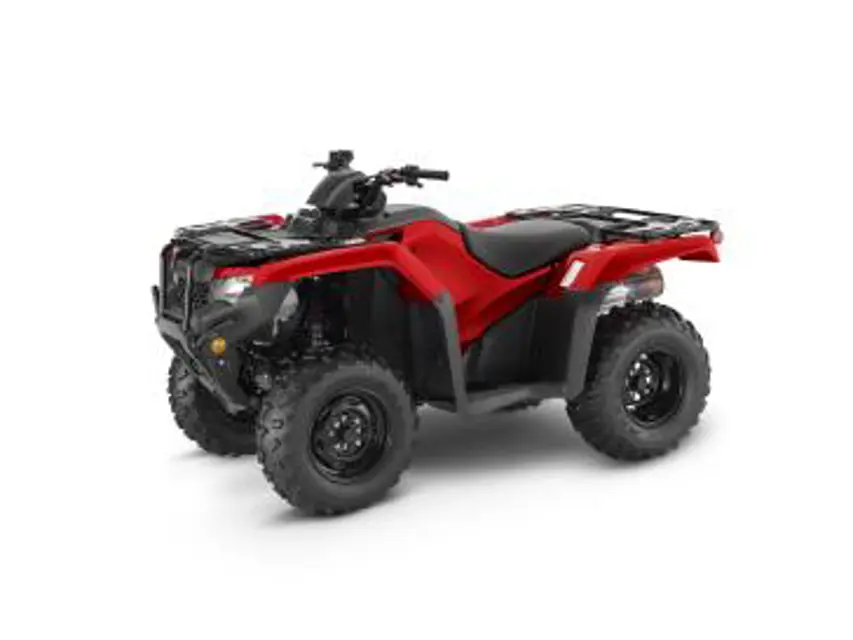

Honda Utility ATV TRX420TE1

Warning: Use only Honda Accessories specifically designed and tested for your ATV.

Accessory does not obscure any lights

Accessory does not reduce ground clearance

Accessory does not limit suspension travel

Accessory does not limit steering travel

Accessory does not interfere with operating any controls

Accessory does not interfere with your ability to shift body position on the seat

Accessory does not interfere with your ability to operate hand and foot controls

Total electrical load of all accessories

Warning: This check requires trained personnel with PPE!

Engine guard (1) is in good condition

Skid plate (2) is in good condition

Are the guard and plate bolts secure?

If any parts are cracked, damaged or loose, proceed to the next steps

Upload a photo of the damaged parts

Estimated cost for replacement parts

Sign off on the skid plate & engine guard check

Warning: This procedure should be serviced by your dealer, unless the owner has proper tools and service data and is mechanically qualified.

Refer to the official Honda Service Manual (page 274).

Refer to Safety Precautions on page 121.

Brake pad wear will depend upon the severity of usage and riding conditions. The pads will wear faster in wet or muddy conditions.

Inspect the pads visually during all regular service intervals to determine the pad wear.

Check the wear indicator (1). If the wear indicator aligns with the edge of the reference mark (2), both pads must be replaced.

See your dealer for this replacement.

Always inspect both pads in both the right and left front brake calipers.

Sign off on the brake pad wear check

Safety Precautions: This procedure requires mechanical skill and professional tools such as a torque wrench. If you do not have the skills or the tools, see your dealer.

NOTICE: Using the wrong oil filter may result in leaks or engine damage.

Change the oil with the engine warm to assure complete and rapid draining.

Upload a photo of the removed oil check lid and the oil fill cap/dipstick from the front crankcase.

Engine oil drain bolt and sealing washer removed?

Install a New Engine Oil Filter: Place shop towels under the oil filter cover because oil will flow out.

Upload a photo of the removed seat.

Upload a photo of the removed tank cover assembly.

Warning: This procedure should be serviced by your dealer, unless the owner has proper tools and service data and is mechanically qualified.

Refer to the official Honda Service Manual (page 274).

Refer to Safety Precautions on page 121.

Check the operation of the rear brake light switch (1) at the right side behind the engine

Adjustment of the rear brake light switch

Sign off on the brake light switch adjustment
