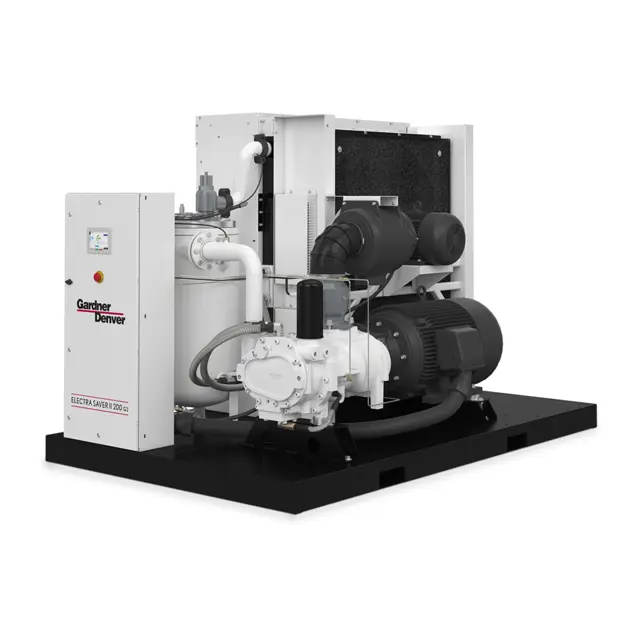

Gardner Denver Compressor EAM99C

RECOMMENDED LUBRICANT - Gardner Denver compressors are factory filled with AEON lubricants.

These lubricants are formulated to the highest quality standards and are factory authorized, tested and approved for use in rotary screw compressors.

AEON lubricants are available through your authorized Gardner Denver compressor distributor.

OIL SPECIFICATIONS - The factory fill compressor lubricant is Gardner Denver AEON 9000 SP lubricating coolant which can be used for year-round operation.

AEON 9000 SP is a synthetic, extended life lubricant which can extend lubricant change intervals up to 4 times that of a petroleum based lubricant.

A lubricant analysis program for a periodic check of lubricant quality and remaining life can maximize the change interval.

Is the compressor lubricated with AEON 9000 SP?

Enter the current operating hours of the compressor

Enter the date of the last lubricant change

Warning: This inspection requires trained personnel with PPE!

Visual inspection indicates a rupture, crack or pin hole in the pleated media

Pressure drop through a filter with a freshly cleaned element

Pressure drop is below three (3) inches (76 mm) of water with the compressor running at full load

Sign off on the filter element inspection

Change the compressor lubricant.

UNDER ADVERSE CONDITIONS, CHANGE MORE FREQUENTLY. Flush system if required.

LUBRICANT CHANGE PROCEDURE - Following are the primary steps to be completed when upgrading or changing the type of lubricant.

- Drain oil from air end and cooler while hot.

- Break low point connections and drain oil from pipe runs.

- Dump oil from the filter and reinstall used filter.

2. Fill the system with a 50 percent charge of the new lubricant:

- Start the machine and stay there to observe.

Warning: Ensure the unit is completely off and no air pressure is in the oil reservoir.

Unit is completely off and no air pressure in the oil reservoir?

Disconnect, lockout and tagout the power supply to the starter.

Power supply to the starter disconnected, locked out and tagged out?

Wipe away all dirt around the oil filler plug.

All dirt around the oil filler plug wiped away?

Remove the oil filler plug and add oil as required to return the oil level to the center of the green range on the gauge.

Oil filler plug removed and oil added to the center of the green range on the gauge?

Install the oil filler plug, restore power, run and check for leaks.

Check for dirt accumulation on oil/aftercooler core faces and the cooling fan.

If cleaning is required, follow the steps below:

Was the cleaning operation successful in ensuring effective heat dissipation?

Sign off on the oil, aftercooler and cooling fan check
