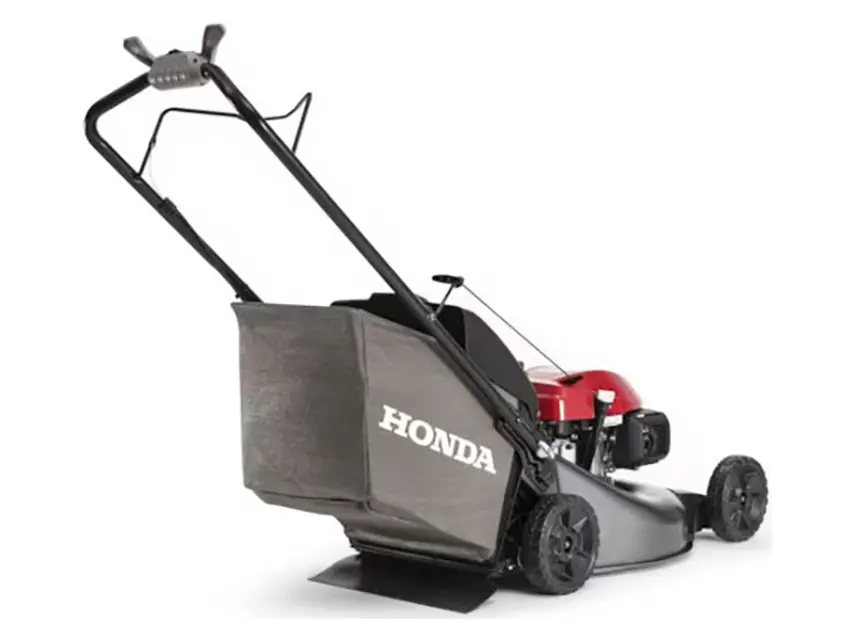

Honda Mower HRN216VKA

Service more frequently when used in dusty areas.

1. Press down on the cover tabs and remove the cover.

2. Remove the filter from the air cleaner housing.

3. Inspect the filter; replace if damaged.

4. Clean the filter by tapping it several times on a hard surface to remove dirt, or blow compressed air (not exceeding 30 psi [207 kPa]) through the air filter from the inside. Never try to brush off dirt; brushing will force dirt into the fibers.

5. Wipe dirt from the inside of the air cleaner housing and cover using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburetor.

6. Reinstall the filter and cover. Be sure both tabs are fully locked in place.

During normal use, the rear shield is subject to deterioration and wear. Remove the grass bag and raise the discharge guard to check the rear shield for cracks or tears. If the rear shield is excessively worn, have it replaced by your authorized Honda servicing dealer.

2. Disconnect the spark plug cap from the spark plug.

3. Tilt the mower to the right side, so the fuel cap side is up. This will help to prevent fuel leakage and hard starting due to carburetor flooding.

4. Inspect the blades for damage, cracks, and excessive rust or corrosion.

Change engine oil every 25 hours when used under heavy load or in high outside air temperatures.

Change the oil after the first month or 5 hours of use.

Change the oil every 6 months or 50 hours of use.

Change the oil more frequently when used under heavy load or high outdoor temperatures.

Drain the used oil while the engine is warm.

Wipe the oil filler area clean, and then remove the oil filler cap/dipstick.

Place a suitable container next to the mower to catch the used oil, and then tilt the mower on its right side.

Warning: Allow the engine to cool before cleaning or washing.

Turn the fuel valve to the OFF position before cleaning the underside of the mower deck.

Mower rested on its right side?

Upload a photo of the cleaned underside of the mower deck

All grass clippings removed from the underside of the mower deck?

Avoid getting water into controls and cables, or anywhere near the engine air cleaner or muffler opening.

Wash the engine by hand, and be careful to prevent water from entering the air cleaner and exhaust opening.

NOTICE: Using a garden hose or pressure washing equipment can force water into the air filter.

Water contacting a hot engine can cause damage. If the engine has been running, allow it to cool before washing.

Engine used under heavy load or in high outside air temperatures?

If yes, change engine oil every 25 hours.

Drain the used oil while the engine is warm.

Place a piece of cardboard or drop cloth on the ground.
